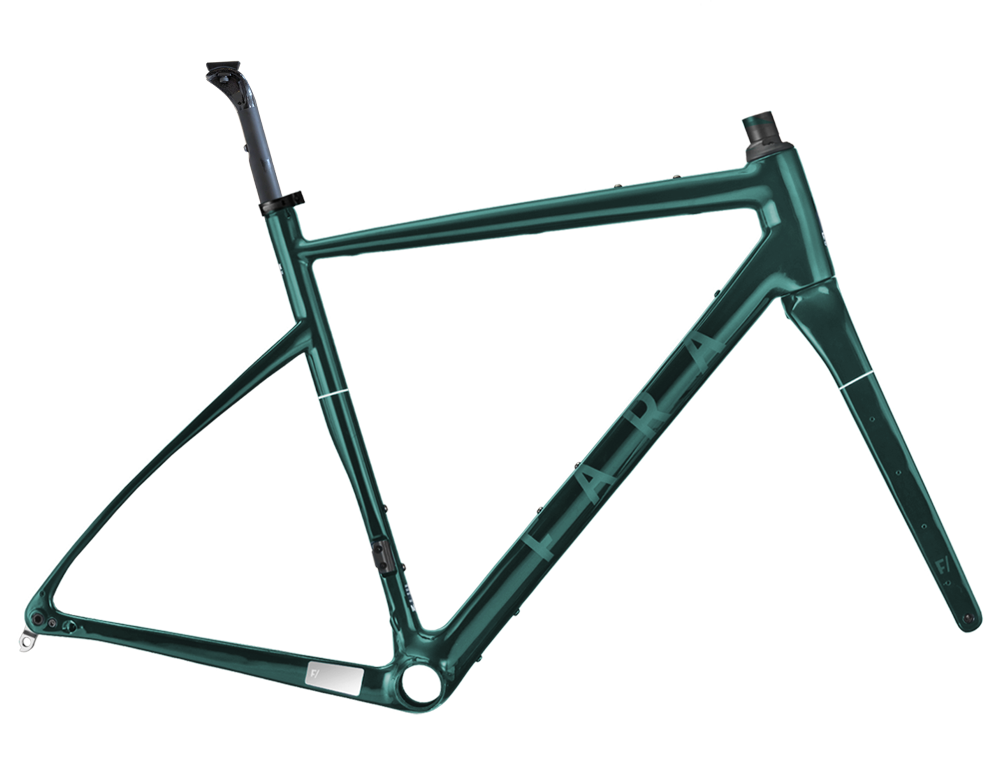

F/All-Road Fjord Green Frameset with Thru Axles
IN
STOCK
Technical Specifications

• Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
• Frameset - F/AR (w. Hw, No Headset)
• Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
• HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
• Headset Parts - A-BOX Top Cover Water Seal (IS)
• Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003

Size Specific Specification: 49cm
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Frameset - F/AR / Color: Fjord Green / Size: 49
1 x Fork - F/AR2 / Color: Fjord Green / Offset: 56mm
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Frame - F/AR2 / Color: Fjord Green / Size: 49
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-BOX Top Cover Water Seal
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/AR / Color: Fjord Green / Size: 53
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Frame - F/AR2 / Color: Fjord Green / Size: 53
1 x Fork - F/AR2 / Color: Fjord Green / Offset: 50mm
1 x Headset Parts - A-BOX Top Cover Water Seal
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Frameset - F/AR / Color: Fjord Green / Size: 56
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Frame - F/AR2 / Color: Fjord Green / Size: 56
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Fork - F/AR2 / Color: Fjord Green / Offset: 50mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Parts - A-BOX Top Cover Water Seal
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Frameset - F/AR / Color: Fjord Green / Size: 59
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Frame - F/AR2 / Color: Fjord Green / Size: 59
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Fork - F/AR2 / Color: Fjord Green / Offset: 50mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Headset Parts - A-BOX Top Cover Water Seal
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.

F/All-Road Frameset

$ 3,790
Take your adventures to a new level with the F/All-Road. This bike will quite simply go anywhere you want it to, and you will have a blast getting there! Generous tire clearance means you can run anything from fast road slicks for group rides with your friends, up to 38mm gravel-ready all-rounders to allow for exploration; all whilst maintaining a quick and responsive ride. The Frameset only option includes all necessary hardware, such as Token A-box, a set of lightweight thru axles and a set of grommets and bolts.

• Sub 1000g weight
• Integrated Bikepacking System
• Up to 38mm tire clearance

All purchases of our F/All-Road frameset include a CeramicSpeed bottom bracket and headset bearings.

Material Carbon
Color


Select size

S / 49cm

SOLD OUT
Notify me
M / 53cm

IN
STOCK
L / 56cm

SOLD OUT
Notify me
XL / 59cm

LOW
STOCK


Bundle options

All our frames come with a CeramicSpeed Bottom Bracket.
Please tell us your fit preference here:
Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: FSTSAR2490FJ0-S. M / 53cm: FSTSAR2530FJ0-S. L / 56cm: FSTSAR2560FJ0-S. XL / 59cm: FSTSAR2590FJ0-S.

The details

Features
• Carbon fiber frame and fork construction
• Frame weight 980 grams (Size dependant)
• Fork weight 390 grams
• Integrated Bikebacking System
• Integrated Fender mounts front and rear
• Light rack compatible mounts
• Three bottle mounts
• Top tube Bento mount
• Fork mounted cargo cage attachments
• Front/rear flat mount disc brakes 140mm (160mm w/adapter)
• Fully integrated brake cable routing F/R
• Fully integrated derailleur routing F/R
• 1.5'' Token S-Box integrated headset
• Compatible with Electronic and Mechanical shifting
• 1x and 2x compatible
• 27.2 mm round seatpost, universal clamp
• 100mm and 142mm TA 12mm axles
• BB386 bottom bracket standard

Size
4 sizes to fit nearly every rider

Our F/All-Road size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
49 cm
160 — 170 cm
53 cm
167 — 177 cm
56 cm
177 — 187 cm
59 cm
185 — 195 cm
Geometry
Size S
49cm		M
53cm		L
56cm		XL
59cm
A. Stand-over height 728mm762mm798mm827mm
B. Front centre 590mm592mm609mm626mm
C. Rear centre 415mm415mm415mm415mm
D. Wheel base 993mm996mm1013mm1030mm
E. Top tube length 521mm547mm564mm581mm
F. Stack 530mm555mm583mm610mm
G. Reach 369mm377mm386mm395mm
H. Head stack 115mm137mm166mm194mm
I. Seat tube angle 74°73°73°73°
J. Head tube angle 71°72°72°72°
K. BB Center to the top
of the seat tube		 487mm517mm557mm585mm
L. Max Seatpost insertion 170mm200mm220mm220mm

Integrated cable routing

The Token A-Box system allows the cables to run fully internally yet uses standard bearings in a simple design and no proprietary parts. The F/All-Road can be built either fully integrated or using a traditional bar and stem, making set-up, service and travel easy for the rider. Internal cables make mounting any type of handlebar bag a breeze, not to mention giving your bike a functional and clean look.

Feature Benefit
Versatility Can use both standard and aero integrated bars
Simplicity, Ease of Use - No proprietary parts Easy to travel with, easy to maintain and find parts, any bike shop can fix it.
Clean functionality No messy external cables, easier to mount bags, no holes in frame to let water and mud in.

Stealth fender mounts

The F/All-Road boasts fender compatibility front and rear. The mounts are compatible with most fender systems, but we have also made our own system.

The Fara Cycling reflective fenders are made specifically for our bikes and fit easily in minutes. At night you'll be seen with the reflective coating.

Feature Benefit
Versatility Mounts will work with any fender type
Stealthy Hidden from view when not in use
Reflectivity Be highly visible at night

Wide tire clearance

The F/All-Road is designed to work ideally with 32-35mm, 700c tires for a fast rolling, comfortable all-surface setup. For more grip and protection, you can also mount 35mm low-knob treads like the Panaracer GravelKing Semi-Slick or even a wider 38mm slick tire.

Combined with the Fara Cycling reflective fenders, there is room for 35mm slicks or even 33mm studded tires like the Suomi Routa.
Integrated cable routing
Stealth fender mounts
Wide tire clearance
Related products
Quickview
Fara Water Bottle Cage $ 43 A featherweight addition to any bike, this sleek Fara Cycling carbon fibre bottle cage provides a se...
Quickview
Fara Water Bottle $ 11 A must have for any Fara owner - the Fara Water Bottle is a 600ml, 100% recyclable, BPA-free hydrati...
Quickview
Fara Front derailleur mount $ 18 Spare CNC AL6061 T6, Anodized Alloy Front Derailleur Mount for all Fara Cycling framesets from 2021 ...
Quickview
Fara Rear Derailleur Mount (2021-) $ 28 Spare CNC 7075, Anodized Alloy Rear Derailleur Mount for Fara frameset models (F/All-Road 2021-, F/R...
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
sion, designed.
Material Carbon
Estimated weight 9.42 kg
Read More
Alternative products
Quickview
F/Road Frameset $ 3,886 The F/RD is an all-round race bike that strikes a balance between aero-optimized tubing, precise han...
Quickview
F/Road Frameset $ 3,799 The F/RD is an all-round race bike that strikes a balance between aero-optimized tubing, precise han...
Quickview
F/Road Frameset $ 3,981 The F/Road is an all-round race bike that strikes a balance between aero-optimized tubing, precise h...
Quickview

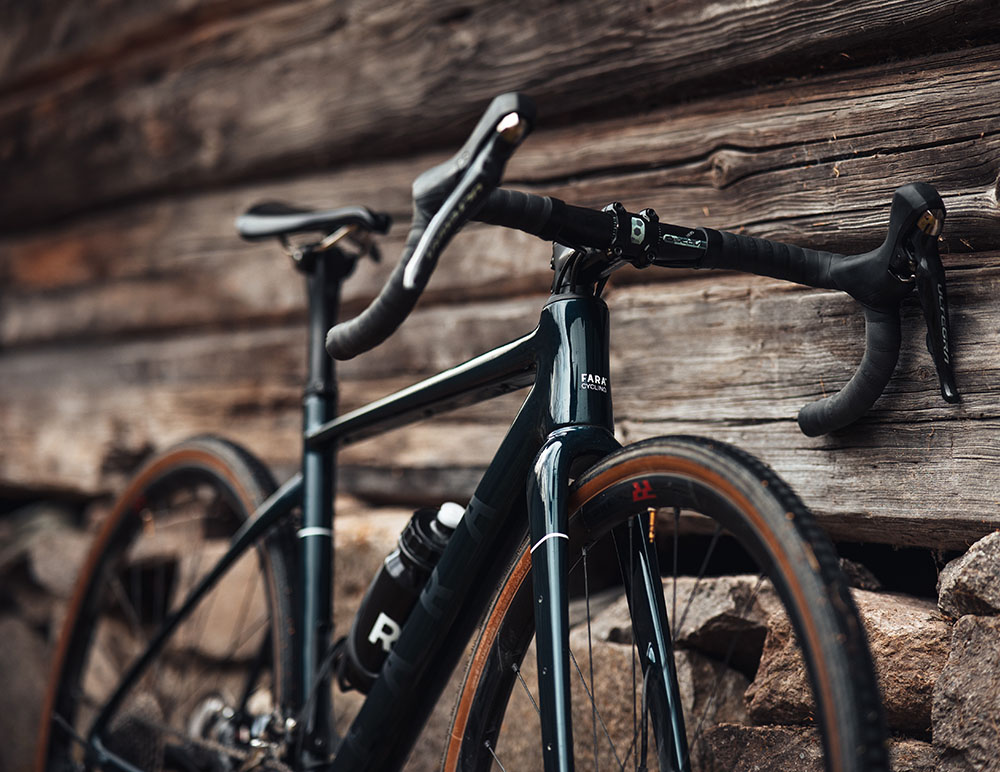

F/All-Road Frameset $ 3,790 Take your adventures to a new level with the F/All-Road. This bike will quite simply go anywhere you...
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
spension, designed.
Material Carbon
Estimated weight 9.42 kg
Read More
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More

Taxes and duties are included in the price that we show you on our website for Norway, United Kingdom, Sweden, Denmark, Switzerland and for all destinations within the European Union.
