Technical Specifications

• HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
• Frameset - F/GR (w. Hw, No Headset)
• Paper Tube 29*2.5*41
• Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
• Expander - Token - Expander W. Top Cap F/ Logo Alu

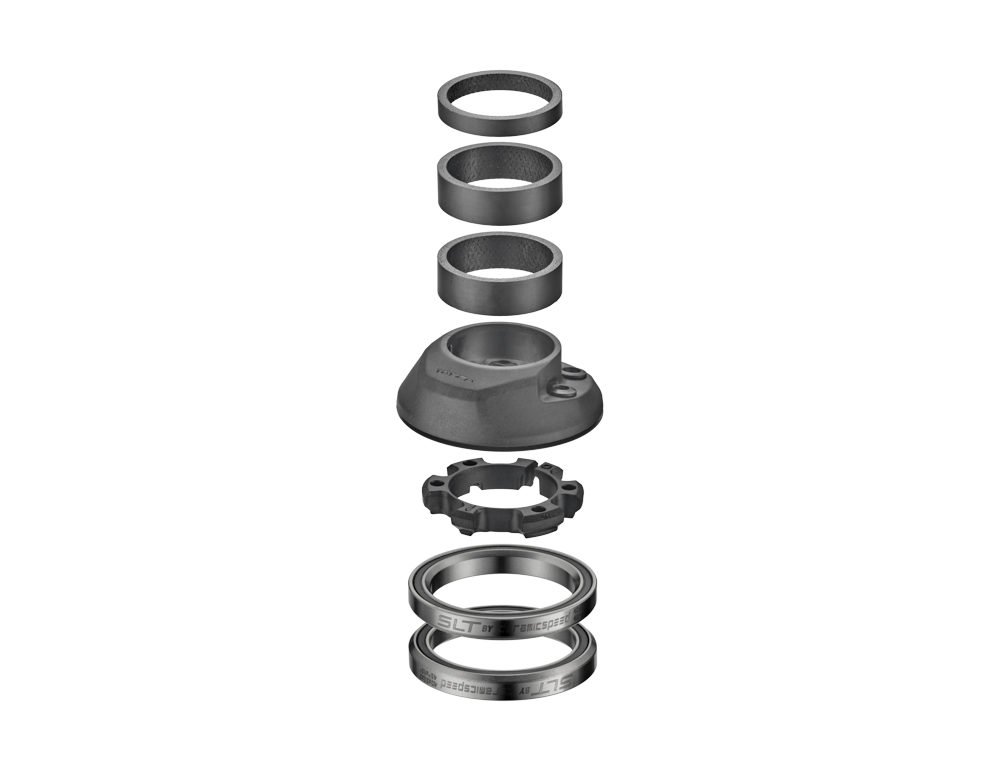

• Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
• Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
• Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
• Headset Parts - A-BOX Top Cover Water Seal (IS)
• Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003

Size Specific Specification: 49cm
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Frameset - F/GR / Color: Fjord Green / Size: 49
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Frame - F/GR3 / Color: Fjord Green / Size: 49
1 x Fork - F/GR3 / Color: Fjord Green
1 x Rolling Tool Bag/ FARA Cycling Logo
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x String - Faux Leather, Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Parts - A-BOX Top Cover Water Seal
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
1 x Headset Parts - A-BOX Top Cover Water Seal
1 x Frameset - F/GR / Color: Fjord Green / Size: 53
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Frame - F/GR3 / Color: Fjord Green / Size: 53
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x String - Faux Leather, Black
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Fork - F/GR3 / Color: Fjord Green
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/GR / Color: Fjord Green / Size: 56
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Frame - F/GR3 / Color: Fjord Green / Size: 56
1 x Fork - F/GR3 / Color: Fjord Green
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x String - Faux Leather, Black
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Parts - A-BOX Top Cover Water Seal
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Frameset - F/GR / Color: Fjord Green / Size: 59
1 x Fork - F/GR3 / Color: Fjord Green
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x String - Faux Leather, Black
1 x Frame - F/GR3 / Color: Fjord Green / Size: 59
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Fjord Green
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Headset Parts - A-BOX Top Cover Water Seal
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.

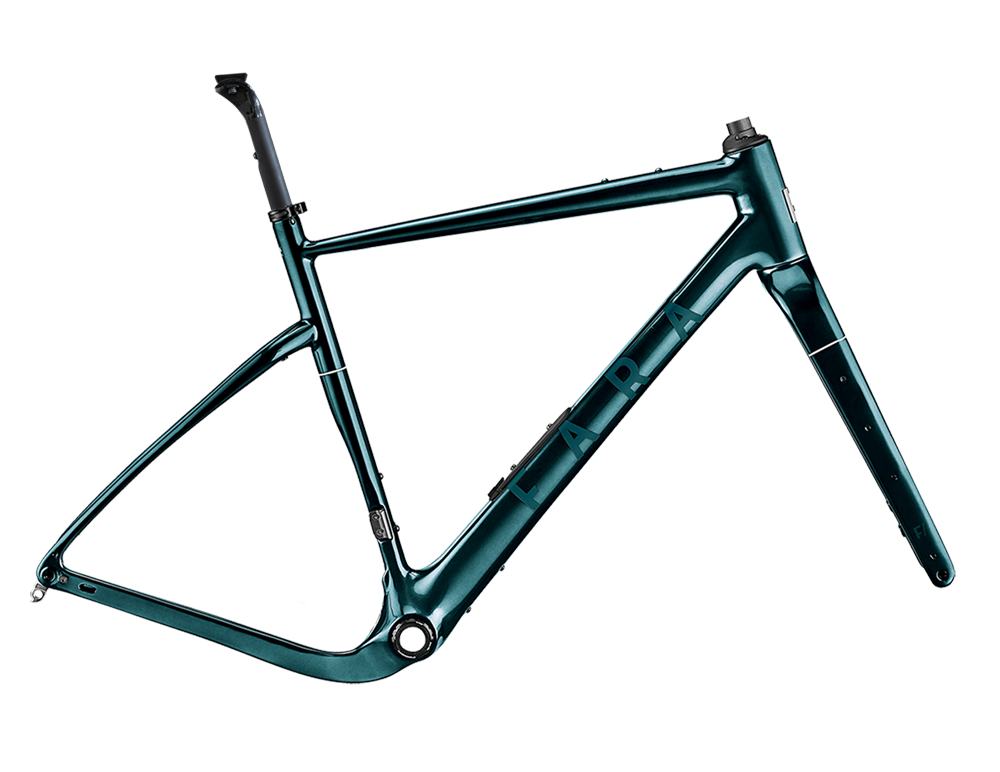

F/Gravel Frameset

NOK 36,900
The incredibly capable F/Gravel can handle nearly any type of terrain you throw at it. Ride it like a hard-tail mtb, or cruise silky gravel on long bike-packing adventures. With up to 700c x 50mm tire clearance this is by far our most versatile bike in our range. The frame features fully internal cable routing and the Internal Stash Hatch storage, our own Integrated Bikepacking System, with a multitude of attachment points for carrying gear on any adventure. The Frameset only option includes all necessary hardware, such as Token A-box, a set of lightweight thru axles and a set of grommets and bolts.

• 1050g frame weight
• Integration Bikepacking System
• Up to 50mm tire clearance

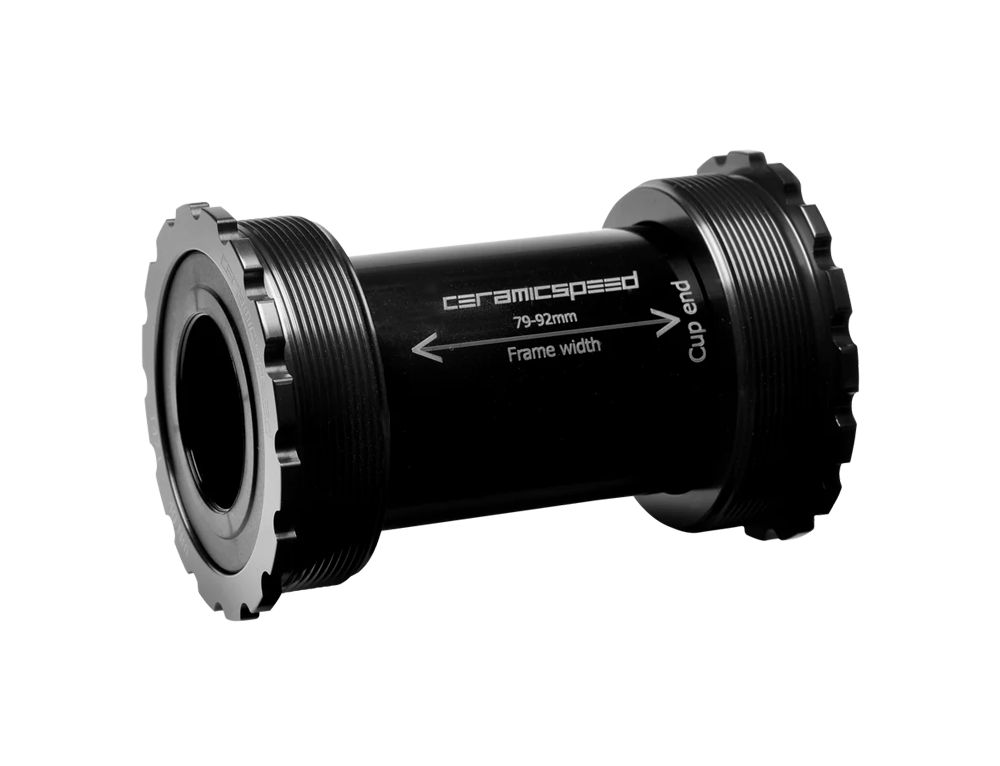

All purchases of our F/Gravel frameset include a CeramicSpeed bottom bracket and headset bearings.

Material Carbon
Color


Select size

S / 49cm

LOW
STOCK
M / 53cm

IN
STOCK
L / 56cm

IN
STOCK
XL / 59cm

LOW
STOCK


Bundle options

All our frames come with a CeramicSpeed Bottom Bracket.
Please tell us your fit preference here:
Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.

The details

Features
• Toray Carbon fibre frame and fork construction
• Frame weight 1050g weight
• Fully internal cable routing
• Curved seat stays for increased comfort
• Integrated Stash-Hatch
• Integrated Bikepacking System
• Universal 27.2mm round seatpost
• T47 Bottom bracket
• Wide tire capabilities up to 700x50mm
• Integrated fender mounts
• Triple fork cargo mounts
• Direct mount front brake for 160mm rotors
• 12mm thru axles

Size
4 sizes to fit nearly every rider

Our F/Gravel size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
49 cm
160 — 170 cm
53 cm
170 — 180 cm
56 cm
180 — 190 cm
59 cm
187 — 197 cm
Geometry
Size S
49cm		M
53cm		L
56cm		XL
59cm
A. Stand-over height 731mm762mm798mm824mm
B. Front centre 605mm618mm635mm653mm
C. Rear centre 425mm425mm425mm425mm
D. Wheel base 1017mm1028mm1043mm1061mm
E. Top tube length 532mm559mm576mm593mm
F. Stack 550mm570mm590mm610mm
G. Reach 377mm386mm396mm407mm
H. Head stack 119mm138mm159mm180mm
I. Seat tube angle 74°73°73°73°
J. Head tube angle 71°72°72°72°
K. BB Center to the top
of the seat tube		 498mm521mm557mm579mm
L. Max Seatpost insertion 180mm180mm220mm240mm

Massive tire clearance

With clearance for tires up to 700c x 50mm you can use tires that are capable of everything roads and trails can throw at you.

The frame is compatible with both 700c and 650b formats as well, allowing a multitude of tire and wheel combinations for all types of terrain.

Curved seat stays

Dropped, curved seat-stay design using specially blended carbon fibres for increased shock dampening. It adds comfort and improved handling to a trail-ready gravel bike.

It adds benefits without using complicated components that will break over time. Together with generous tire volume, the complete package results in a supple ride and fantastic grip without sacrificing lateral stiffness.

Downtube protector

The Fara Downtube protector protects your carbon fiber frame from rocks and dirt that can fly up from the front wheel. And its even made from 75% recycled plastic, so you're doing Mother Earth a solid.
Massive tire clearance
Curved seat stays
Downtube protector
Related products
Quickview
Fara Water Bottle Cage NOK 450 A featherweight addition to any bike, this sleek Fara Cycling carbon fibre bottle cage provides a se...
Quickview
Fara Water Bottle NOK 120 A must have for any Fara owner - the Fara Water Bottle is a 600ml, 100% recyclable, BPA-free hydrati...
Quickview
Fara Front derailleur mount NOK 190 Spare CNC AL6061 T6, Anodized Alloy Front Derailleur Mount for all Fara Cycling framesets from 2021 ...
Quickview
Fara Rear Derailleur Mount NOK 290 Spare CNC 7075, Anodized Alloy Rear Derailleur Mount from 2021 onwards. • Light-weight a...
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
sion, designed.
Material Carbon
Estimated weight 9.42 kg
Read More
Alternative products
Quickview
F/Gravel Frameset NOK 33,900 The incredibly capable F/Gravel can handle nearly any type of terrain you throw at it. Ride it like ...
Quickview
F/Gravel Frameset NOK 35,900 The incredibly capable F/Gravel can handle nearly any type of terrain you throw at it. Ride it like ...
Quickview
F/Gravel Frameset NOK 33,900 The incredibly capable F/Gravel can handle nearly any type of terrain you throw at it. Ride it like ...
Quickview
F/All-Road Frameset NOK 35,900 Take your adventures to a new level with the F/All-Road. This bike will quite simply go anywhere you...
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
spension, designed.
Material Carbon
Estimated weight 9.42 kg
Read More
Recently viewed
Quickview
F/All-Road Frameset NOK 35
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More

Taxes and duties are included in the price that we show you on our website for Norway, United Kingdom, Sweden, Denmark, Switzerland and for all destinations within the European Union.
