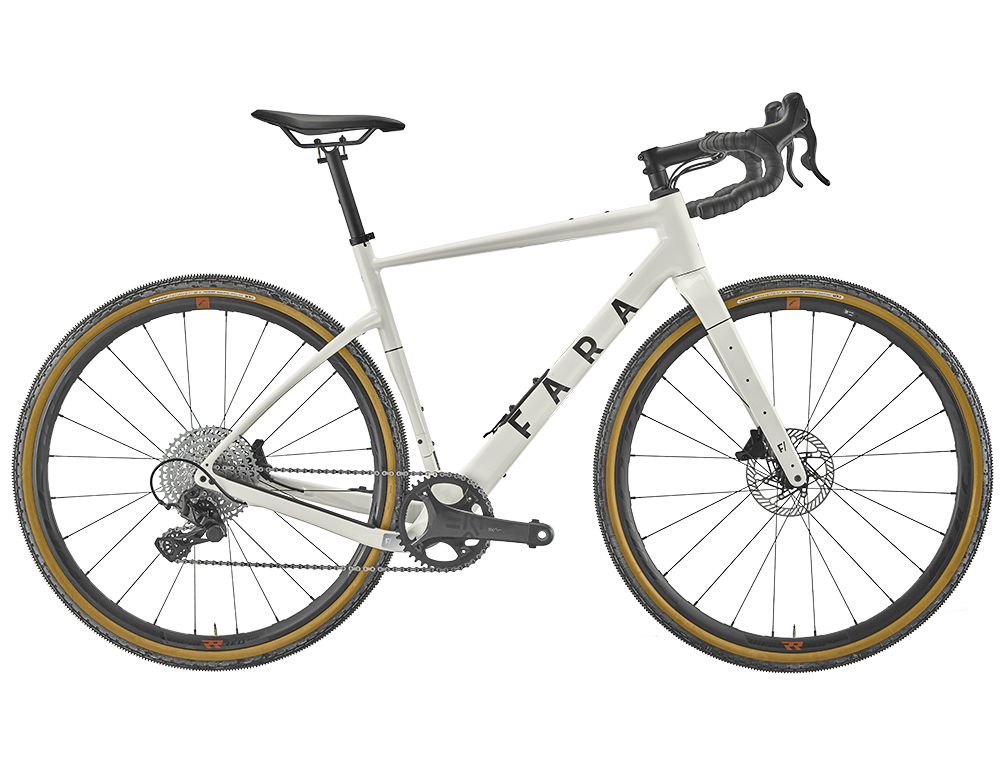

Technical Specifications

• Wheelset - Fulcrum RAPID RED 300 DB
• Frameset - F/GR (w. Hw, Cockpit Specific Headset)

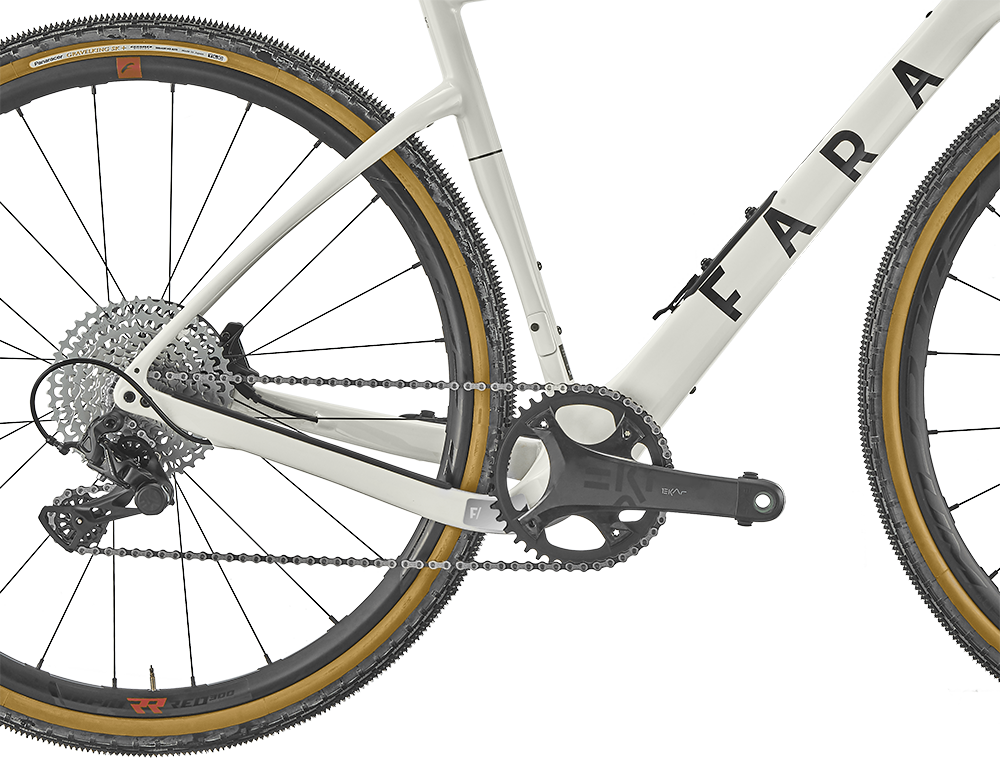

• Groupset - Campagnolo EKAR 1x13s
• Saddle - Fizik TERRA ARGO X3 - 150mm

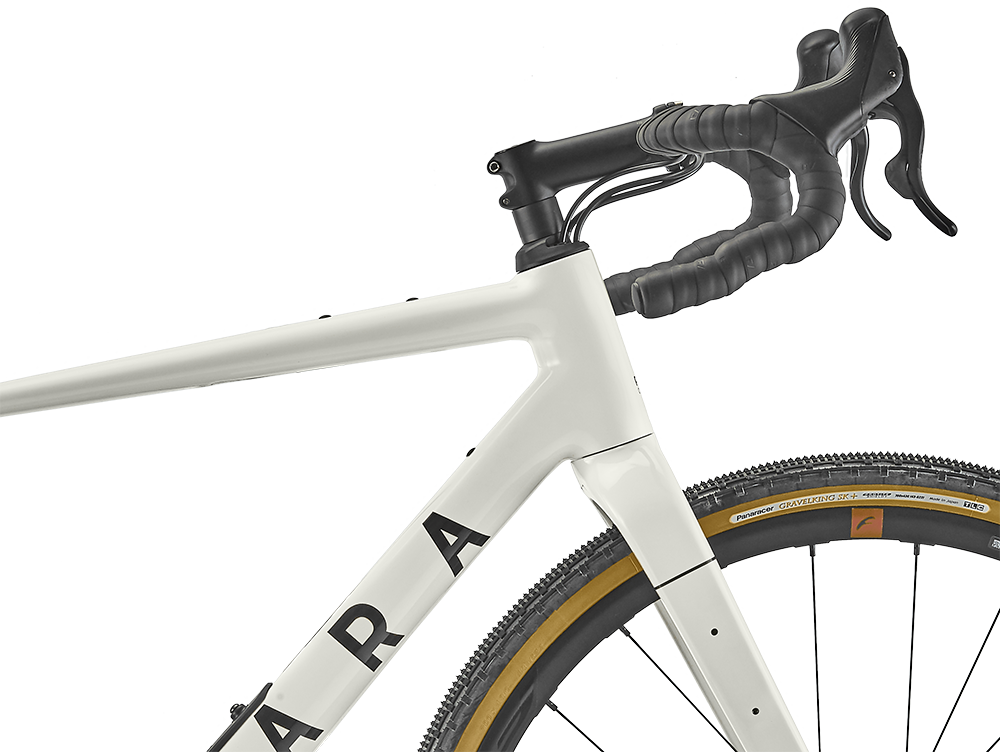

• Cockpit - Ritchey Venturemax Carbon W. 3T Apto Stem

Size Specific Specification: 49cm
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: Campagnolo / Tyre Size/type: 43SK
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
1 x RAPID RED 300 DB 2WF-R C24 AFS / HG11
1 x Frameset - F/GR / Color: Off-White / Size: 49 / Cockpit Integration: Semi-integrated
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Frameset - F/GR / Size: 49 / Color: Off-White
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Fork - F/GR3 / Color: Off-White
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Frame - F/GR3 / Color: Off-White / Size: 49
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x String - Faux Leather, Black
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Groupset - Campagnolo EKAR 1x13s / Crank Length: 170mm / Gear Ratio: 40T W. 11-44T / BB Type: T47-85.5
1 x Chain - EKAR 13s C-Link Chain 117 Links+connecting Link
1 x Brake/shift Set - EKAR 1x13 Left EP + 140 Caliper W Oil
1 x Brake/shift Set - EKAR 1x13 Right Ep + 140 Caliper W Oil
2 x Misc - Campagnolo Olives And Pins
1 x Cassette - EKAR 13s 10-44 Sprockets
1 x Rear Derailleur - EKAR 1x13 Rear Derailleur
1 x Bottom Bracket - BB Outboard Cups PRO-TECH - T47 86
2 x Disc Brake Rotor - AFS 160mm Steel Spider Rotor
1 x Front Chainring - EKAR 13s Crankset 170 Mm 40T
1 x Saddle - Fizik TERRA ARGO X3 - 150mm
1 x Cockpit - Ritchey Venturemax Carbon W. 3T Apto Stem / Stem Length: 90mm / Handlebar Width: 40cm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 40cm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Stem - 3T Apto PRO Stem / Stem Length: 90mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
1 x Cockpit - Ritchey Venturemax Carbon W. 3T Apto Stem / Stem Length: 100mm / Handlebar Width: 42cm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 42cm
1 x Stem - 3T Apto PRO Stem / Stem Length: 100mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Frameset - F/GR / Color: Off-White / Size: 53 / Cockpit Integration: Semi-integrated
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/GR / Size: 53 / Color: Off-White
1 x Frame - F/GR3 / Color: Off-White / Size: 53
1 x String - Faux Leather, Black
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White
1 x Fork - F/GR3 / Color: Off-White
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: Campagnolo / Tyre Size/type: 43SK
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
1 x RAPID RED 300 DB 2WF-R C24 AFS / HG11
1 x Saddle - Fizik TERRA ARGO X3 - 150mm
1 x Groupset - Campagnolo EKAR 1x13s / Crank Length: 172.5mm / Gear Ratio: 42T W. 11-44T / BB Type: T47-85.5
1 x Brake/shift Set - EKAR 1x13 Left EP + 140 Caliper W Oil
1 x Bottom Bracket - BB Outboard Cups PRO-TECH - T47 86
1 x Rear Derailleur - EKAR 1x13 Rear Derailleur
1 x Brake/shift Set - EKAR 1x13 Right Ep + 140 Caliper W Oil
2 x Disc Brake Rotor - AFS 160mm Steel Spider Rotor
1 x Cassette - EKAR 13s 10-44 Sprockets
1 x Front Chainring - EKAR 13s Crankset 172,5mm 42T
1 x Chain - EKAR 13s C-Link Chain 117 Links+connecting Link
2 x Misc - Campagnolo Olives And Pins
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Groupset - Campagnolo EKAR 1x13s / Crank Length: 172.5mm / Gear Ratio: 42T W. 11-44T / BB Type: T47-85.5
1 x Brake/shift Set - EKAR 1x13 Left EP + 140 Caliper W Oil
1 x Bottom Bracket - BB Outboard Cups PRO-TECH - T47 86
1 x Rear Derailleur - EKAR 1x13 Rear Derailleur
1 x Brake/shift Set - EKAR 1x13 Right Ep + 140 Caliper W Oil
2 x Disc Brake Rotor - AFS 160mm Steel Spider Rotor
1 x Cassette - EKAR 13s 10-44 Sprockets
1 x Front Chainring - EKAR 13s Crankset 172,5mm 42T
1 x Chain - EKAR 13s C-Link Chain 117 Links+connecting Link
2 x Misc - Campagnolo Olives And Pins
1 x Saddle - Fizik TERRA ARGO X3 - 150mm
1 x Cockpit - Ritchey Venturemax Carbon W. 3T Apto Stem / Stem Length: 100mm / Handlebar Width: 42cm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 42cm
1 x Stem - 3T Apto PRO Stem / Stem Length: 100mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: Campagnolo / Tyre Size/type: 43SK
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
1 x RAPID RED 300 DB 2WF-R C24 AFS / HG11
1 x Frameset - F/GR / Color: Off-White / Size: 56 / Cockpit Integration: Semi-integrated
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/GR / Size: 56 / Color: Off-White
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Fork - F/GR3 / Color: Off-White
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Frame - F/GR3 / Color: Off-White / Size: 56
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x String - Faux Leather, Black
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x Frameset - F/GR / Color: Off-White / Size: 59 / Cockpit Integration: Semi-integrated
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/GR / Size: 59 / Color: Off-White
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Fork - F/GR3 / Color: Off-White
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x String - Faux Leather, Black
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Off-White
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Frame - F/GR3 / Color: Off-White / Size: 59
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: Campagnolo / Tyre Size/type: 43SK
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
1 x RAPID RED 300 DB 2WF-R C24 AFS / HG11
1 x Cockpit - Ritchey Venturemax Carbon W. 3T Apto Stem / Stem Length: 110mm / Handlebar Width: 44cm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Stem - 3T Apto PRO Stem / Stem Length: 110mm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 44cm
1 x Groupset - Campagnolo EKAR 1x13s / Crank Length: 172.5mm / Gear Ratio: 42T W. 11-44T / BB Type: T47-85.5
1 x Brake/shift Set - EKAR 1x13 Left EP + 140 Caliper W Oil
1 x Bottom Bracket - BB Outboard Cups PRO-TECH - T47 86
1 x Rear Derailleur - EKAR 1x13 Rear Derailleur
1 x Brake/shift Set - EKAR 1x13 Right Ep + 140 Caliper W Oil
2 x Disc Brake Rotor - AFS 160mm Steel Spider Rotor
1 x Cassette - EKAR 13s 10-44 Sprockets
1 x Front Chainring - EKAR 13s Crankset 172,5mm 42T
1 x Chain - EKAR 13s C-Link Chain 117 Links+connecting Link
2 x Misc - Campagnolo Olives And Pins
1 x Saddle - Fizik TERRA ARGO X3 - 150mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

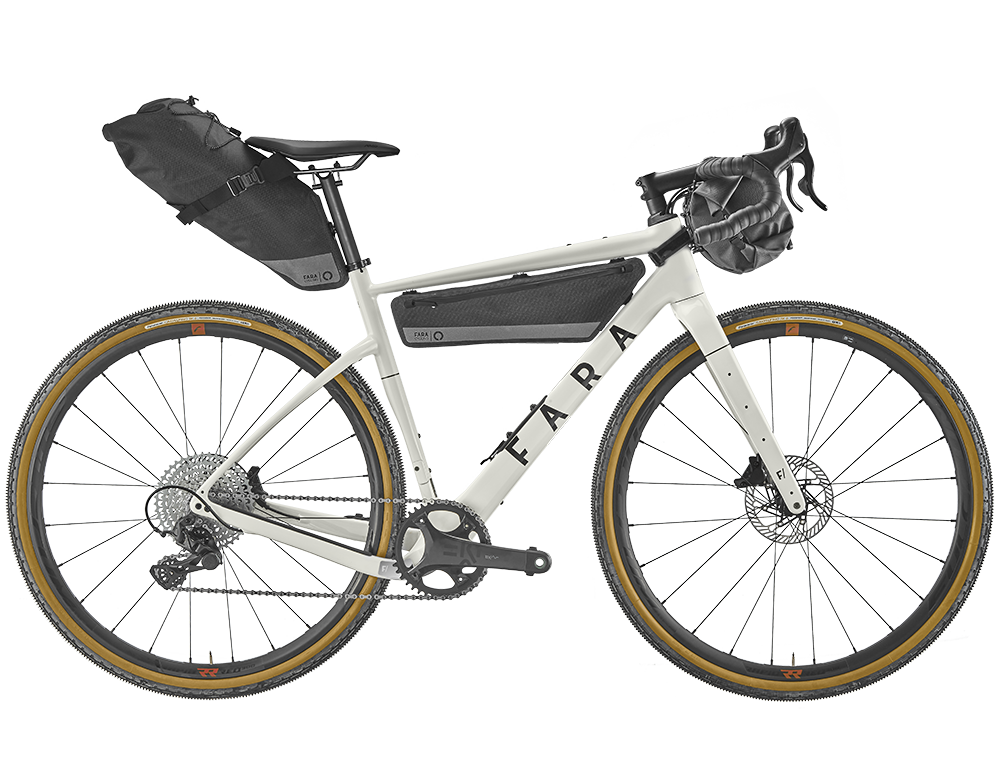

F/Gravel Ekar

$ 4,899
Take your adventures to a new level with the F/Gravel Ekar. Featuring the smooth precision of Campagnolo Ekar with the gearing options to tackle any terrain. This bike will quite simply go anywhere you want it to, and you will have a blast getting there! Generous tire clearance means you can run anything from fast road slicks up to 50mm gravel tyres to allow for off-road exploration whilst maintaining a quick and responsive ride.

• Approx. Weight: 8.3kg (Size Dependent)
• Campagnolo EKAR Groupset
• Rugged Fulcrum Rapid Red 300 DB

Material Carbon
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

S / 49cm

SOLD OUT
Notify me
M / 53cm

SOLD OUT
Notify me
L / 56cm

SOLD OUT
Notify me
XL / 59cm

SOLD OUT
Notify me


Compatible accessories

Water Bottle Bundle $ 95 Add to cart
Water Bottle Bundle $ 95 Add to cart
Fara Rear Derailleur Mount (2021-) $ 29 Add to cart
BikeFinder GPS tracker $ 165 Add to cart
Keo2Max Carbon Pedals $ 100 Add to cart
Candy 3 Black Pedals $ 149 Add to cart
Double Shot 1 Black Pedals $ 59 Add to cart
Ultegra PD-R8000 SPD-SL $ 195 Add to cart
Integrated Bag Bundle $ 379 Add to cart
Integrated Saddle Pack $ 169 Add to cart
Integrated Frame Bag $ 99 Add to cart
Handlebar Bag $ 149 Add to cart
Downtube protector $ 30 Add to cart
F/All-Road Fender Set $ 72 Add to cart


Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: BIFAGR3490OWA-2. M / 53cm: BIFAGR3530OWA-2. L / 56cm: BIFAGR3560OWA-2. XL / 59cm: BIFAGR3590OWA-2.

The details

Features
• Toray Carbon fibre frame and fork construction
• Frame weight 1050g weight
• Fully internal cable routing
• Curved seat stays for increased comfort
• Integrated Stash-Hatch
• Integrated Bikepacking System
• Universal 27.2mm round seatpost
• T47 Bottom bracket
• Wide tire capabilities up to 700x50mm
• Integrated fender mounts
• Triple fork cargo mounts
• Direct mount front brake for 160mm rotors
• 12mm thru axles

Size
4 sizes to fit nearly every rider

Our F/Gravel size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
49 cm
160 — 170 cm
53 cm
170 — 180 cm
56 cm
180 — 190 cm
59 cm
187 — 197 cm
Geometry
Size S
49cm
M
53cm
L
56cm
XL
59cm
A. Stand-over height 731mm762mm798mm824mm
B. Front centre 605mm618mm635mm653mm
C. Rear centre 425mm425mm425mm425mm
D. Wheel base 1017mm1028mm1043mm1061mm
E. Top tube length 532mm559mm576mm593mm
F. Stack 550mm570mm590mm610mm
G. Reach 377mm386mm396mm407mm
H. Head stack 119mm138mm159mm180mm
I. Seat tube angle 74°73°73°73°
J. Head tube angle 71°72°72°72°
K. BB Center to the top
of the seat tube
498mm521mm557mm579mm
L. Max Seatpost insertion 180mm180mm220mm240mm
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More
