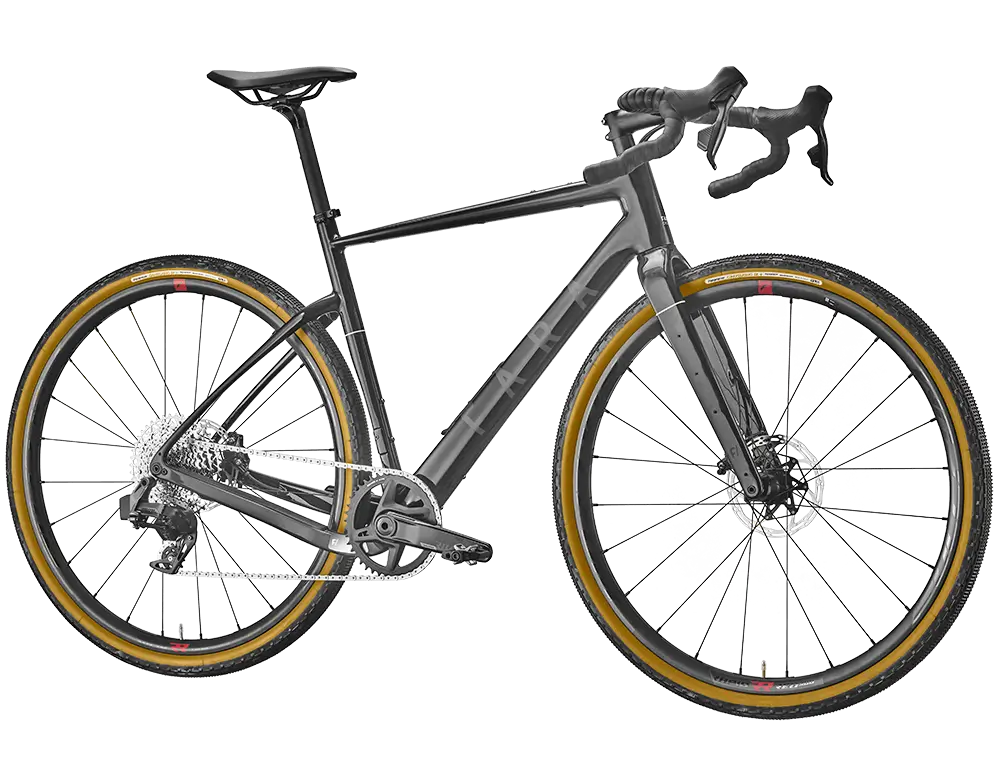

SRAM Rival XPLR
Technical Specifications

• Wheelset - Fulcrum RAPID RED 300 DB
• Bottom Bracket - Token T47V29-TS T47
• Saddle - Fizik TERRA ARGO X5 - 150mm

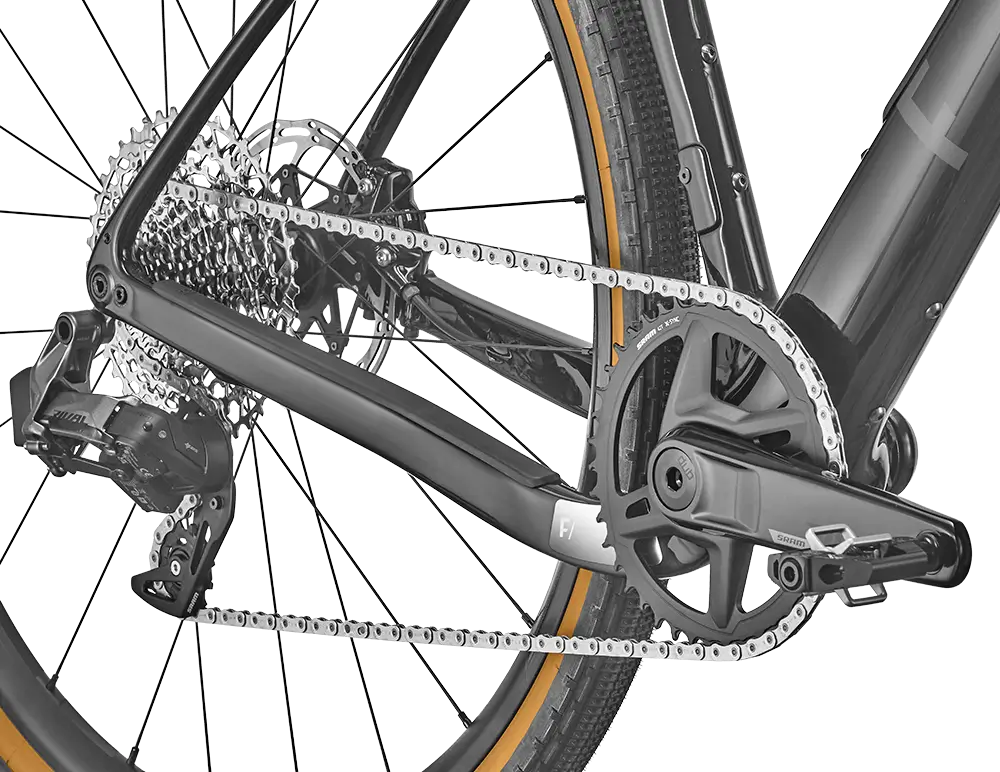

• Groupset - SRAM Rival AXS XPLR 1x12s

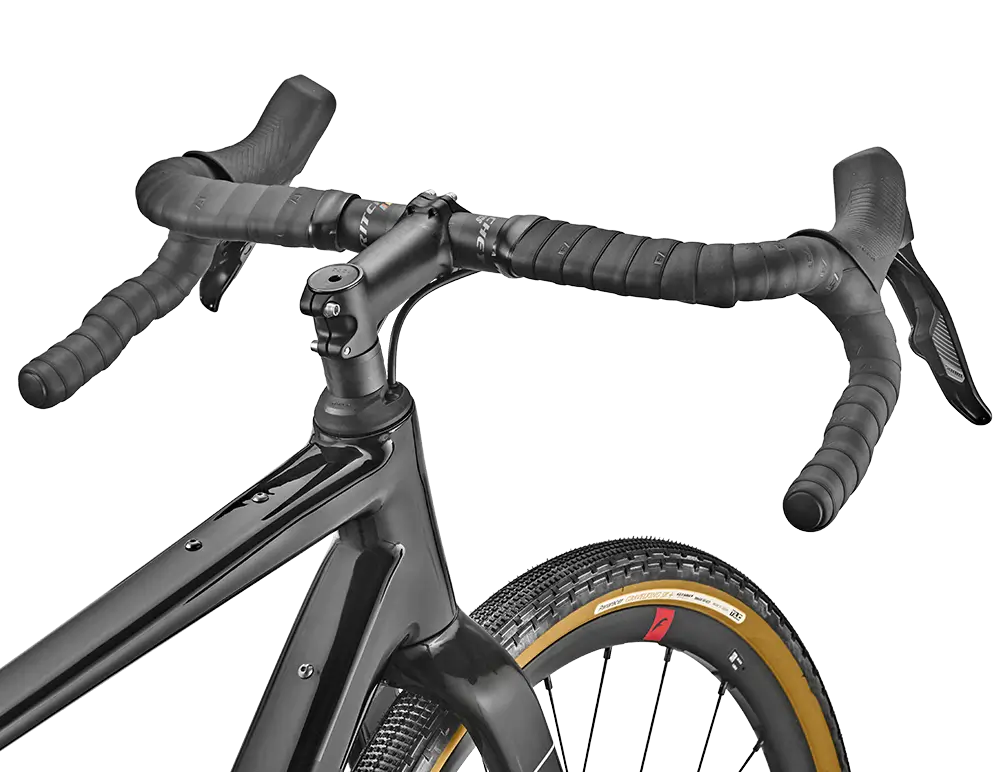

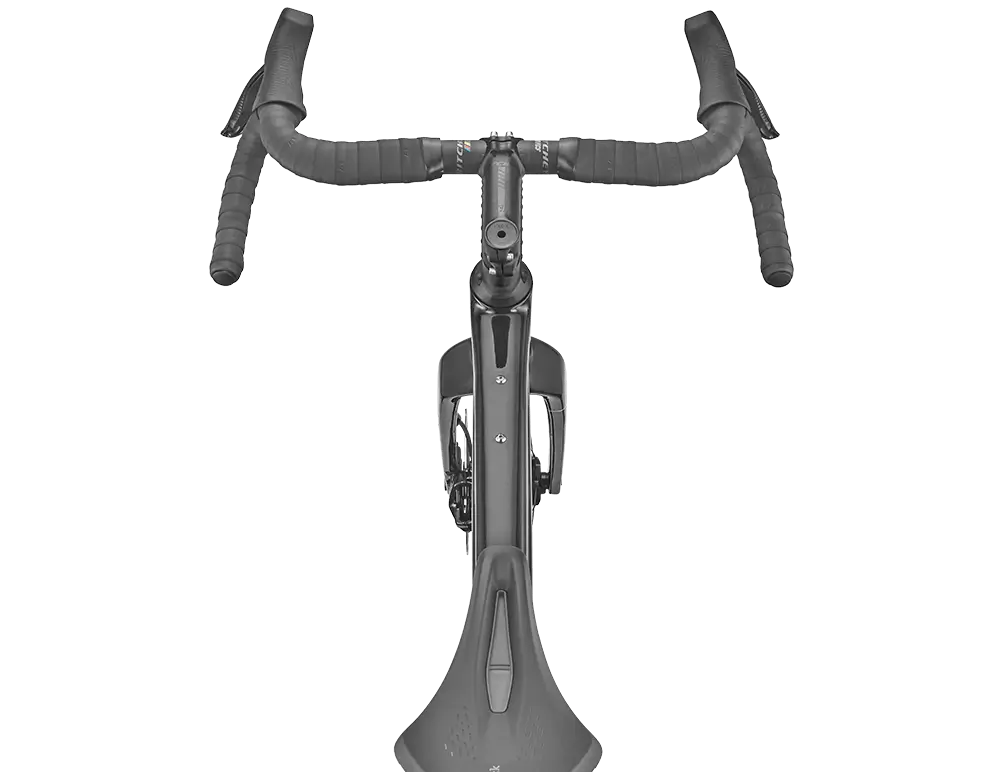

• Cockpit - Ritchey WCS Venturemax Carbon

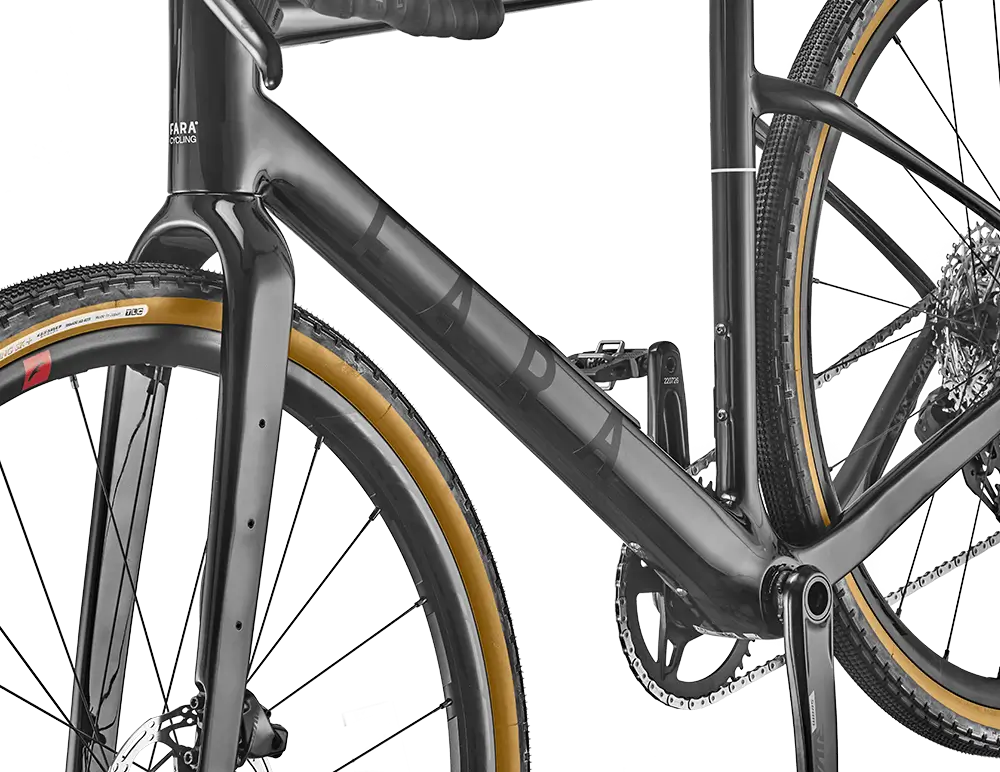

• Frameset - F/GR (w. Hw, Cockpit Specific Headset)

Size Specific Specification: 49cm
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: SRAM / Tyre Size/type: 43SK
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
1 x Bottom Bracket - Token T47V29-TS T47
1 x Saddle - Fizik TERRA ARGO X5 - 150mm
1 x Groupset - SRAM Rival AXS XPLR 1x12s / Crank Length: 170mm / Gear Ratio: 42T W. 11-44T / BB Type: Standalone
1 x Front Chainring - SRAM RIVAL 1 D1 DUB WIDE 170 42 / Size: 42t / Crank Length: 170mm
1 x Chain - SRAM RIVAL D1 12S / Length: 120L
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Rear Derailleur - SRAM RIVAL XPLR ETAP AXS D1 MAX 44T
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD REAR/RT F20 1800
1 x Cassette - SRAM RIVAL XG 1251 D1 XPLR 10-44
1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery
1 x Cockpit - Ritchey WCS Venturemax Carbon / Stem Length: 90mm / Handlebar Width: 40cm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Stem - COMP 4-AXIS-44 84/6D, 90mm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 40cm
1 x Frameset - F/GR / Color: Black Metal / Size: 49 / Cockpit Integration: Semi-integrated
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Frameset - F/GR / Size: 49 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Fork - F/GR3 / Color: Black Metal
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Frame - F/GR3 / Color: Black Metal / Size: 49
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x String - Faux Leather, Black
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
1 x Frameset - F/GR / Color: Black Metal / Size: 53 / Cockpit Integration: Semi-integrated
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Frameset - F/GR / Size: 53 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x String - Faux Leather, Black
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Frame - F/GR3 / Color: Black Metal / Size: 53
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Fork - F/GR3 / Color: Black Metal
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Saddle - Fizik TERRA ARGO X5 - 150mm
1 x Groupset - SRAM Rival AXS XPLR 1x12s / Crank Length: 172.5mm / Gear Ratio: 42T W. 11-44T / BB Type: Standalone
1 x Front Chainring - SRAM RIVAL 1 D1 DUB WIDE 1725 42 / Size: 42t / Crank Length: 172.5mm
1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Chain - SRAM RIVAL D1 12S / Length: 120L
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD REAR/RT F20 1800
1 x Cassette - SRAM RIVAL XG 1251 D1 XPLR 10-44
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Rear Derailleur - SRAM RIVAL XPLR ETAP AXS D1 MAX 44T
1 x Cockpit - Ritchey WCS Venturemax Carbon / Stem Length: 100mm / Handlebar Width: 42cm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 42cm
1 x Stem - COMP 4-AXIS-44 84/6D, 100mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: SRAM / Tyre Size/type: 43SK
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
1 x Bottom Bracket - Token T47V29-TS T47
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Bottom Bracket - Token T47V29-TS T47
1 x Saddle - Fizik TERRA ARGO X5 - 150mm
1 x Frameset - F/GR / Color: Black Metal / Size: 56 / Cockpit Integration: Semi-integrated
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/GR / Size: 56 / Color: Black Metal
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x String - Faux Leather, Black
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Fork - F/GR3 / Color: Black Metal
1 x Frame - F/GR3 / Color: Black Metal / Size: 56
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Groupset - SRAM Rival AXS XPLR 1x12s / Crank Length: 172.5mm / Gear Ratio: 42T W. 11-44T / BB Type: Standalone
1 x Front Chainring - SRAM RIVAL 1 D1 DUB WIDE 1725 42 / Size: 42t / Crank Length: 172.5mm
1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Chain - SRAM RIVAL D1 12S / Length: 120L
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD REAR/RT F20 1800
1 x Cassette - SRAM RIVAL XG 1251 D1 XPLR 10-44
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Rear Derailleur - SRAM RIVAL XPLR ETAP AXS D1 MAX 44T
1 x Cockpit - Ritchey WCS Venturemax Carbon / Stem Length: 100mm / Handlebar Width: 42cm
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 42cm
1 x Stem - COMP 4-AXIS-44 84/6D, 100mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: SRAM / Tyre Size/type: 43SK
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x Saddle - Fizik TERRA ARGO X5 - 150mm
1 x Bottom Bracket - Token T47V29-TS T47
1 x Groupset - SRAM Rival AXS XPLR 1x12s / Crank Length: 172.5mm / Gear Ratio: 42T W. 11-44T / BB Type: Standalone
1 x Front Chainring - SRAM RIVAL 1 D1 DUB WIDE 1725 42 / Size: 42t / Crank Length: 172.5mm
1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Chain - SRAM RIVAL D1 12S / Length: 120L
1 x Brake/shift Set - SRAM RIVAL ETAP AXS D1 SJD REAR/RT F20 1800
1 x Cassette - SRAM RIVAL XG 1251 D1 XPLR 10-44
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Rear Derailleur - SRAM RIVAL XPLR ETAP AXS D1 MAX 44T
1 x Wheelset - Fulcrum RAPID RED 300 DB / Frame Model: F/Gravel R / Groupset: SRAM / Tyre Size/type: 43SK
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
1 x Frameset - F/GR / Color: Black Metal / Size: 59 / Cockpit Integration: Semi-integrated
2 x Headset Spacer - TKC3410UD, 10mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Headset Spacer - TKC3405UD, 5mm Round Carbon Headset Spacer/ UD, Matt, W/o Logo, OEM
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x HS Top Cover - F/AR F/GR Semi-Intergraded S-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Frameset - F/GR / Size: 59 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Frame - F/GR3 / Color: Black Metal / Size: 59
1 x Fork - F/GR3 / Color: Black Metal
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x String - Faux Leather, Black
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Cockpit - Ritchey WCS Venturemax Carbon / Stem Length: 100mm / Handlebar Width: 44cm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Handlebar - ROAD WCS CARBON VENTUREMAX 24deg Flare, 44cm
1 x Stem - COMP 4-AXIS-44 84/6D, 100mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

F/Gravel Rival XPLR AXS ´24

$ 4,499
The F/Gravel is our go anywhere, ride anything, adventure bike. Ultimately, it can handle nearly any type of off-road riding you feel comfortable throwing at it. It has nimble handling and 50mm tyre clearance, meaning you can cover rough terrain with confidence and in relative comfort.

While it will breeze over a tarmac transfer with ease to get you to that next gravel section, its certainly not most at home on the road. If you rarely ride technical terrain or rough, chunky gravel then our F/All-Road bike would probably be a more suitable option as it's better designed for dirt roads and has better tarmac capabilities.

SRAM Rival XPLR 1x is a gravel-specific groupset with electronic shifting. It hits the sweetspot for gravel adventures and racing. You get a wide range of gears to get you up steep gravel climbs and go fast on the flats.

With its integrated baggage system, stash hatch and full set of mounts the F/Gravel is perfect for bikepacking. The limits of its range are nearly endless.


• Electronic shifting
• Gravel-specific handlebars
• Internal cable routing
• Up to 50mm tires
• 1300g frame weight

Material Carbon fiber
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

S / 49cm

Estimated shipping:
04 Jul - 18 Jul
M / 53cm

Estimated shipping:
04 Jul - 18 Jul
L / 56cm

Estimated shipping:
04 Jul - 18 Jul
XL / 59cm

Estimated shipping:
04 Jul - 18 Jul

Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: BIFAGR3490BL2. M / 53cm: BIFAGR3530BL2. L / 56cm: BIFAGR3560BL2. XL / 59cm: BIFAGR3590BL2.
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More
