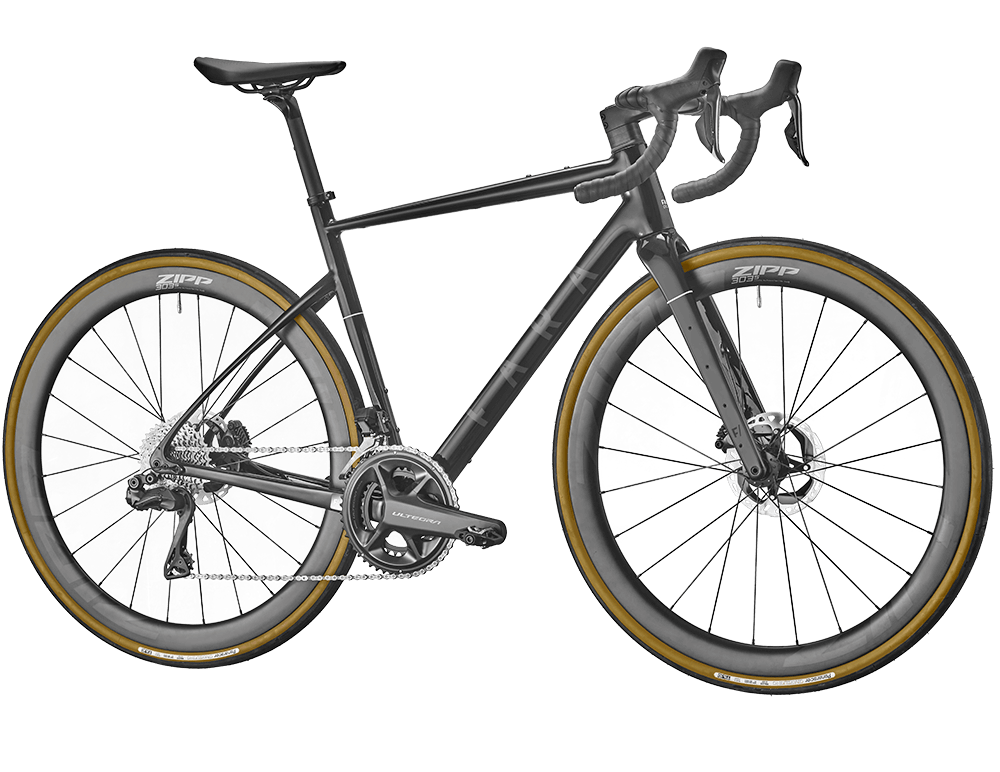

F/All-Road Ultegra Di2
F/AR is compatible with tires up to 38mm (measured width), however Shimano Ultegra R8170 front derailleur design limits this to approx 35mm measured width with slick tires
Technical Specifications

• Frameset - F/AR (w. Hw, Cockpit Specific Headset)

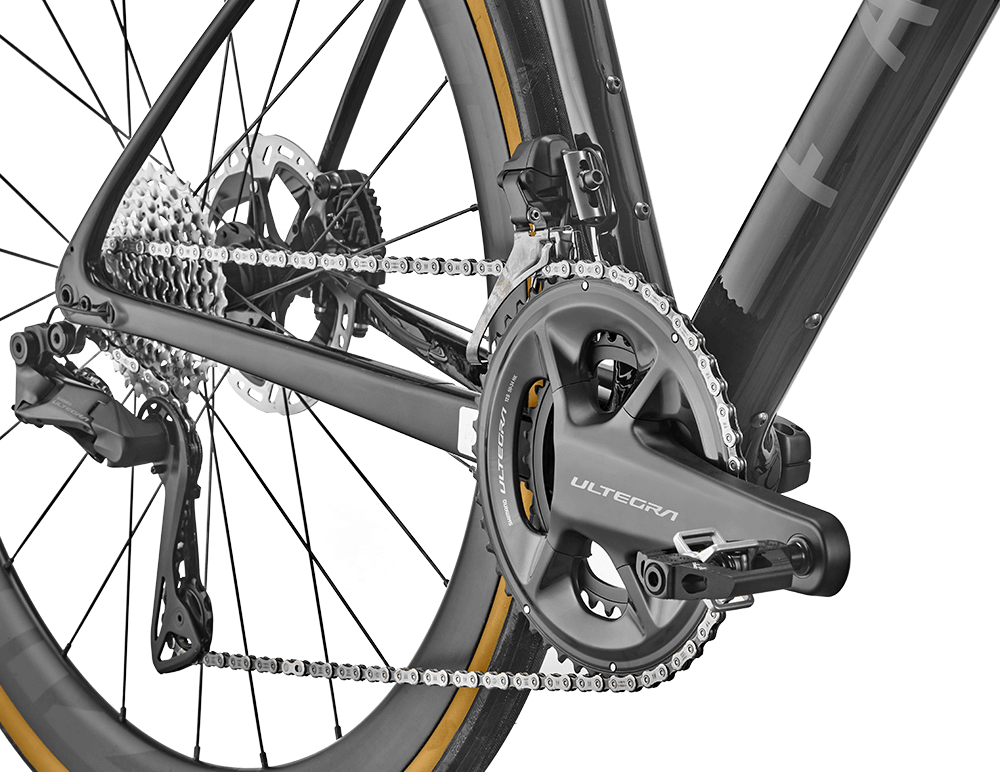

• Groupset - Shimano Ultegra R8170 Di2
• Bottom Bracket - Ninja Lite TK38624C BB386
• Cockpit - F/ Carbon ROAD BARSTEM Mk.2
• Saddle - Fizik TEMPO ARGO R5 - 150mm
• Wheelset - ZIPP 303s 700c

Size Specific Specification: 49cm
1 x Frameset - F/AR / Size: 49 / Cockpit Integration: Integrated / Color: Black Metal
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Frameset - F/AR / Size: 49 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Frame - F/AR2 / Color: Black Metal / Size: 49
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Rolling Tool Bag/ FARA Cycling Logo
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
1 x Fork - F/AR2 / Color: Black Metal / Offset: 56mm
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Groupset - Shimano Ultegra R8170 Di2 / Crank Length: 170mm / Gear Ratio: 50/34T W. 11-34T / BB Type: Standalone
1 x Cassette - CSR8100 123457914704, 11-34T 12s
1 x Brake/shift Set - R8170 R8170J LN R0 F RR RFG0 L 1700mm
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Di2 Battery - BTDN300
1 x Rear Derailleur - RDR8150 D-ATT
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Front Derailleur - FDR8150 F
1 x Chain - CNM8100 118 L Q
1 x Brake/shift Set - R8170 R8170J LN L0 B LF RF00 L 1000mm
1 x Front Chainring - FCR8100 170mm, 34X50T
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Bottom Bracket - Ninja Lite TK38624C BB386
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 400 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 400 X 90 Mm
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: Shimano / Tyre Size/type: 32SL
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c HG11
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: Shimano / Tyre Size/type: 32SL
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c HG11
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Groupset - Shimano Ultegra R8170 Di2 / Crank Length: 170mm / Gear Ratio: 50/34T W. 11-34T / BB Type: Standalone
1 x Cassette - CSR8100 123457914704, 11-34T 12s
1 x Brake/shift Set - R8170 R8170J LN R0 F RR RFG0 L 1700mm
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Di2 Battery - BTDN300
1 x Rear Derailleur - RDR8150 D-ATT
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Front Derailleur - FDR8150 F
1 x Chain - CNM8100 118 L Q
1 x Brake/shift Set - R8170 R8170J LN L0 B LF RF00 L 1000mm
1 x Front Chainring - FCR8100 170mm, 34X50T
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Bottom Bracket - Ninja Lite TK38624C BB386
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 400 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 400 X 90 Mm
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
1 x Frameset - F/AR / Size: 53 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Frameset - F/AR / Size: 53 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Frame - F/AR2 / Color: Black Metal / Size: 53
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Rolling Tool Bag/ FARA Cycling Logo
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Bottom Bracket - Ninja Lite TK38624C BB386
1 x Groupset - Shimano Ultegra R8170 Di2 / Crank Length: 170mm / Gear Ratio: 50/34T W. 11-34T / BB Type: Standalone
1 x Cassette - CSR8100 123457914704, 11-34T 12s
1 x Brake/shift Set - R8170 R8170J LN R0 F RR RFG0 L 1700mm
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Di2 Battery - BTDN300
1 x Rear Derailleur - RDR8150 D-ATT
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Front Derailleur - FDR8150 F
1 x Chain - CNM8100 118 L Q
1 x Brake/shift Set - R8170 R8170J LN L0 B LF RF00 L 1000mm
1 x Front Chainring - FCR8100 170mm, 34X50T
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 420 X 90 Mm
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 420 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Frameset - F/AR / Size: 56 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Frameset - F/AR / Size: 56 / Color: Black Metal
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Frame - F/AR2 / Color: Black Metal / Size: 56
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: Shimano / Tyre Size/type: 32SL
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c HG11
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 420 X 90 Mm
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 420 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Bottom Bracket - Ninja Lite TK38624C BB386
1 x Wheelset - ZIPP 303s 700c / Frame Model: F/AR / Groupset: Shimano / Tyre Size/type: 32SL
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Rear Wheel - ZIPP 303S Carbon TL 700c HG11
1 x Front Wheel - ZIPP 303S Carbon TL 700c
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Saddle - Fizik TEMPO ARGO R5 - 150mm
1 x Frameset - F/AR / Size: 59 / Cockpit Integration: Integrated / Color: Black Metal
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Frameset - F/AR / Size: 59 / Color: Black Metal
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Frame - F/AR2 / Color: Black Metal / Size: 59
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Groupset - Shimano Ultegra R8170 Di2 / Crank Length: 170mm / Gear Ratio: 50/34T W. 11-34T / BB Type: Standalone
1 x Cassette - CSR8100 123457914704, 11-34T 12s
1 x Brake/shift Set - R8170 R8170J LN R0 F RR RFG0 L 1700mm
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Di2 Battery - BTDN300
1 x Rear Derailleur - RDR8150 D-ATT
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Front Derailleur - FDR8150 F
1 x Chain - CNM8100 118 L Q
1 x Brake/shift Set - R8170 R8170J LN L0 B LF RF00 L 1000mm
1 x Front Chainring - FCR8100 170mm, 34X50T
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

F/All-Road Ultegra Di2 ´24

$ 5,889
NOTICE: LEGACY PRODUCT - will not be restocked. Our current lineup of products is available here

Our flagship model, the do-it-all F/All-Road Ultegra Di2, is created for all-day comfort on longer rides,, be it bikepacking on smooth tarmac or getting rowdy on mixed surface routes. This full-carbon frame is fast and responsive enough to be used exclusively on the road, but features wide tire clearance allowing it to be able to handle plenty of off-road riding too. What we love most about the F/All-Road is being able to change the characteristics of the bike so drastically with a simple switch of wheels.

Shimano Ultegra Di2 gives smooth gear shifts at the tap of a button. Power up efficiently, turning each pedal stroke into a dynamic ride. The intuitive and accessible shift buttons provide a seamless connection between rider and bike, enhancing overall handling and responsiveness.

The Zipp 303S wheels are designed for superior aerodynamics and lightweight performance. They provide speed and agility on diverse terrains and the tubeless-ready technology increases puncture resistance.

• Integrated handlebars
• Electronic shifting
• Integrated mounts for bikepacking bags
• Hidden fender mounts
• 980g frame weight

Material Carbon
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

S / 49cm

SOLD OUT
Notify me
M / 53cm

SOLD OUT
Notify me
L / 56cm

SOLD OUT
Notify me
XL / 59cm

SOLD OUT
Notify me


Compatible accessories

Fara water bottle bundle
Water Bottle Bundle $ 90 Add to cart
Fara rear derailleur mount - all models
Fara Rear Derailleur Mount (2021-) $ 28 Add to cart
BikeFinder GPS tracker
BikeFinder GPS tracker $ 157 Add to cart
Look Keo2Max Pedals
Keo2Max Pedals $ 128 Add to cart
Candy 3 Black - pedals (2-hole cleat compatible)
Candy 3 Black Pedals $ 142 Add to cart
Double Shot 1 Black Pedals
Double Shot 1 Black Pedals $ 56 Add to cart
Shimano Ultegra PD-R8000 SPD-SL (3-hole cleat compatible)
Ultegra PD-R8000 SPD-SL $ 185 Add to cart
Saddle Bag
Integrated Saddle Pack $ 161 Add to cart
Fara Integrated Frame Bag | Seamless & Waterproof Bikepacking Solution
Integrated Frame Bag $ 94 Add to cart
Handlebar Bag
Handlebar Bag $ 142 Add to cart


Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: BIFAAR2490BL1. M / 53cm: BIFAAR2530BL1. L / 56cm: BIFAAR2560BL1. XL / 59cm: BIFAAR2590BL1.
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More
