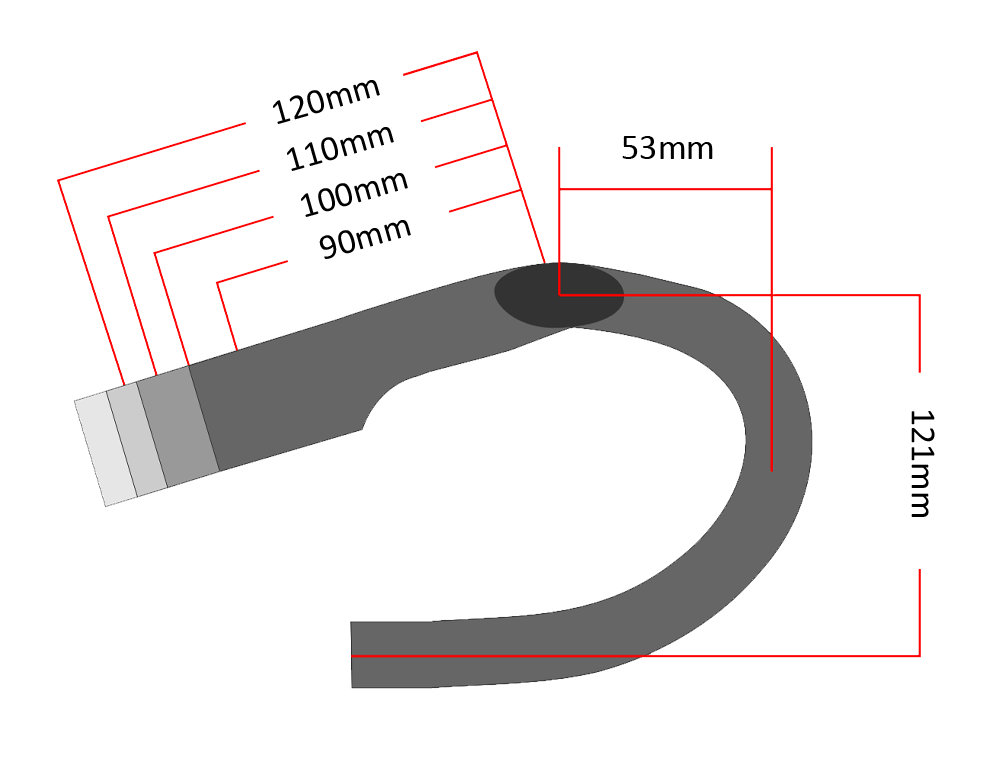

- reach: 53mm (HB top tube Center - Center of furthest point of drop bar bend)
- drop: 121mm (HB top tube Center - Center of drop bar end)
- angle: -6deg (Stem - Steerer tube angle)

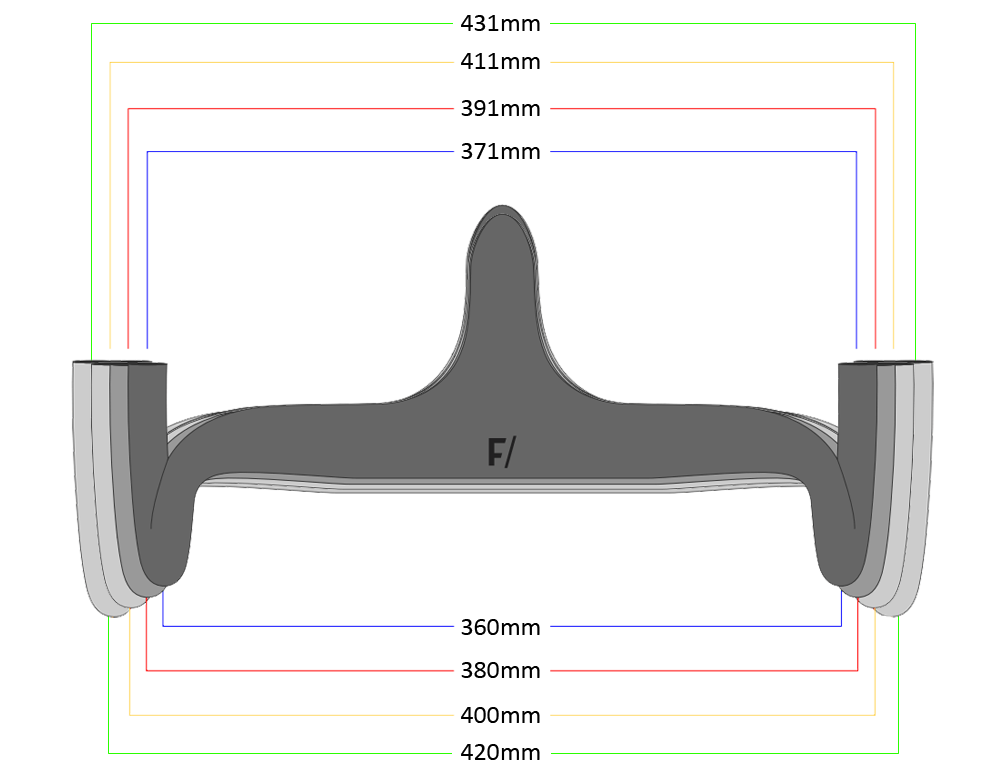

- drop width: see inforgrafic drawing material (distance between Inner - Inner sides of drop bar end)
Recommended add-ons for existing Fara bicycle owners: If you currently already own of the following bicycles equipped with:
- F/All-Road (2021-), F/Gravel (2022-) equipped with semi integrated cockpit with cables visible underneath the stem - we recommend purchasing
Token S-Box > A-Box (F/Gravel 2022-, F/All-Road 2021-)
- F/Road (2022-) equipped with semi integrated cockpit with cables visible underneath the stem - we recommend purchasing
Headset conversion kit - Token S-Box > A-Box (F/Road 2022-)
- existing owners of F/All-Road (2021-), F/Road (2022-), F/Gravel (2022-) equipped Fara Integrated Barstem (
Mk.1,
Mk.2)
do not need any additional add-on product to assemble Fara Integrated Barstem Mk.2 on their bicycle and can continue using their existing Token A-Box headset
Compatible with all bikes with 28.6mm 1-1/8´ steerer tube

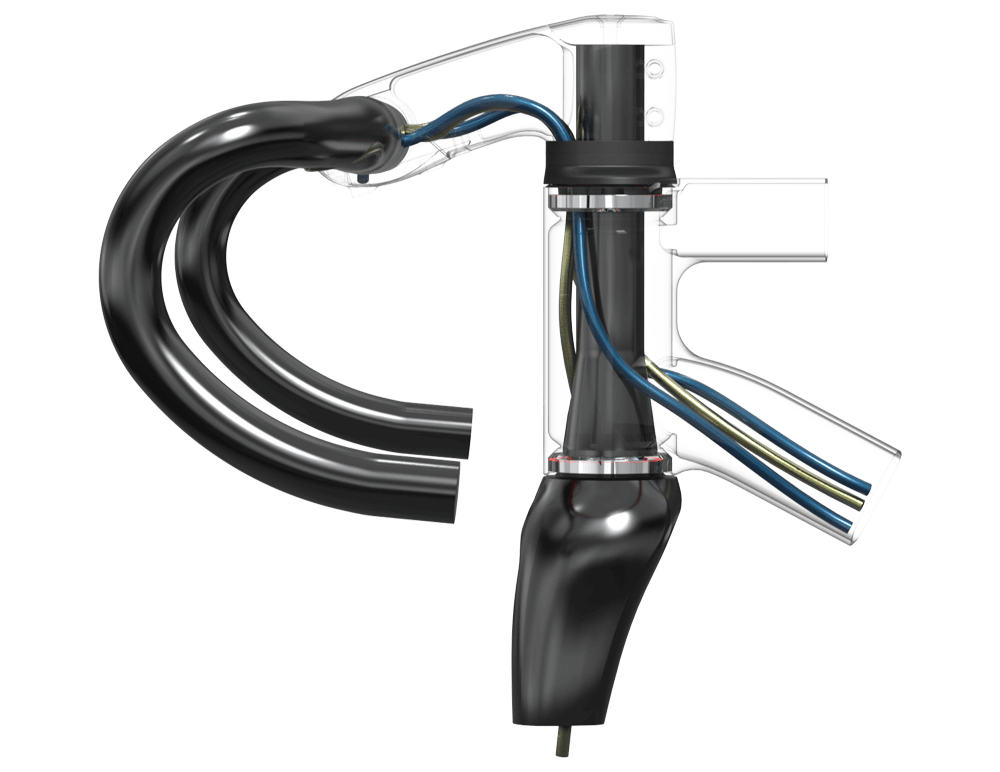

Even though our cockpit is designed to integrate with Token Cable Box system, you can use it on any bike that has the same 28.6mm 1-1/8´ steerer tube. If your bike does not have this headset system, the cables can be routed through the handlebars alone, or through the handlebars and stem before they enter the frame through the head tube or the frame in other places.
Integrated computer mount
You can mount any standard two-bolt computer mount with the Fara Integrated Barstem Mk.2.
