Technical Specifications

• Wheelset - Campagnolo BORA WTO 45 DB 2WF DARK

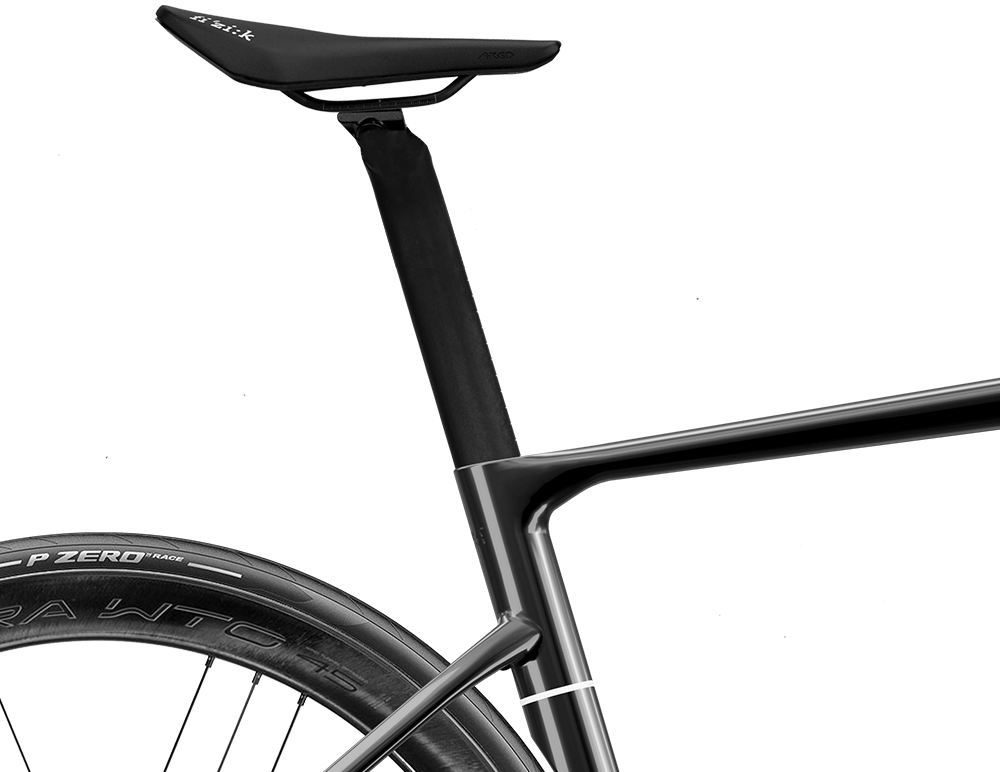

• Saddle - VENTO ARGO R1 - 140mm, Carbon Rail W. F/RD Seat Clamp Adapter Kit

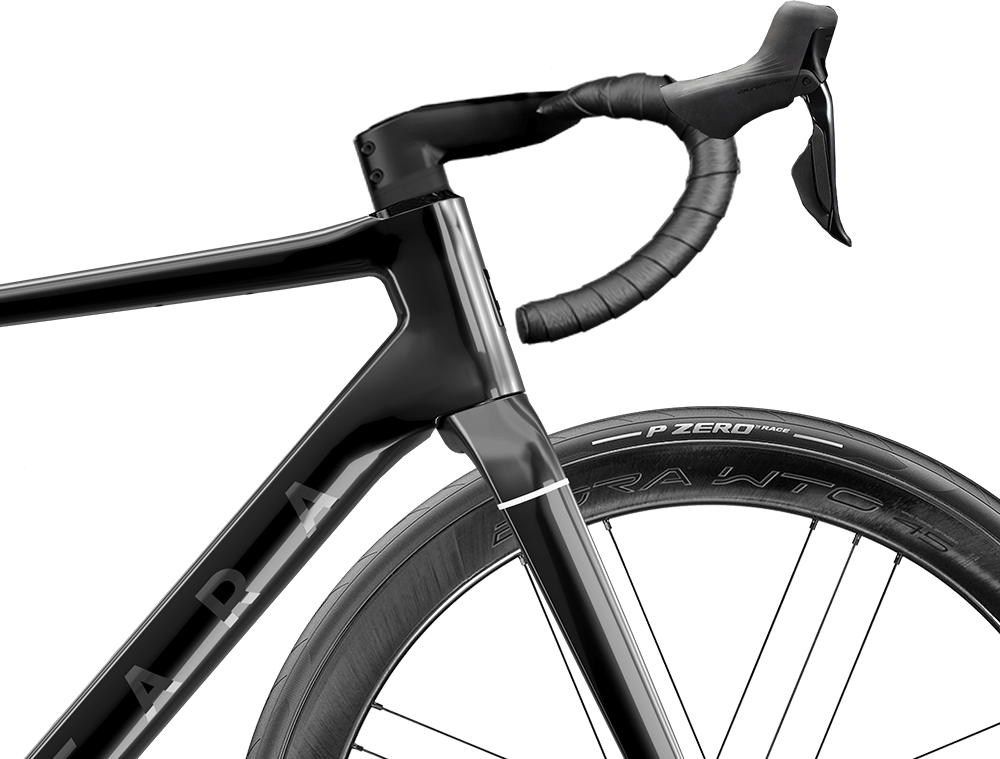

• Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM (Taishan)
• Frameset - F/RD (w. Hw, Cockpit Specific Headset)

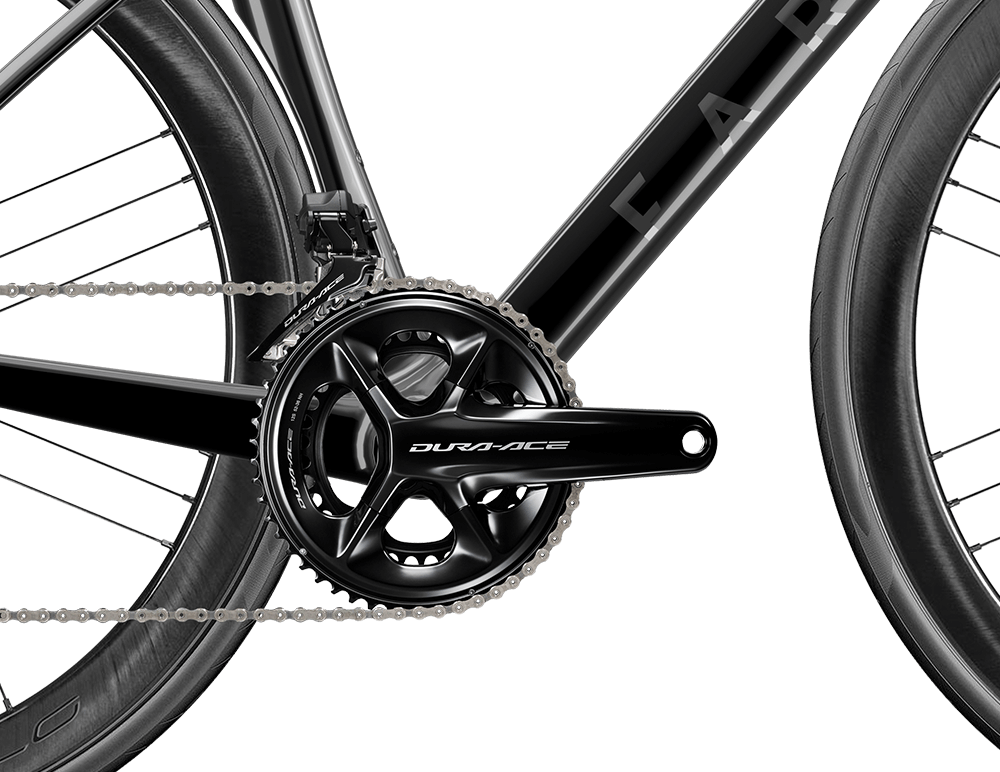

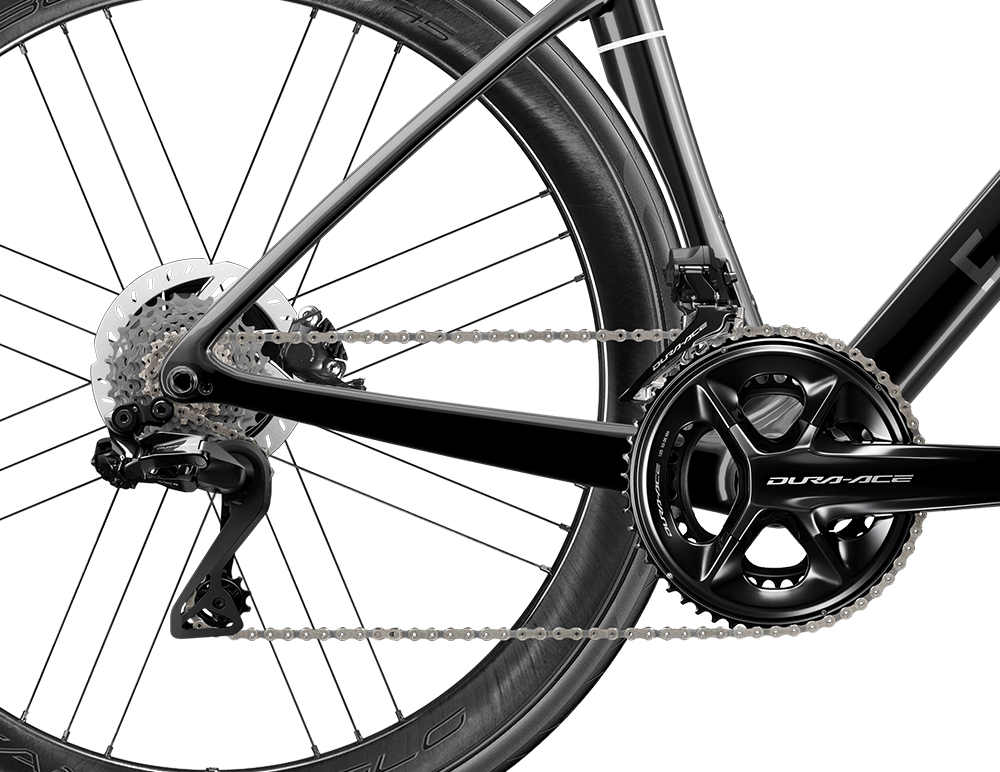

• Groupset - Shimano Dura Ace R9270 Di2

Size Specific Specification: 48cm
1 x BORA WTO 45 DB 2WF DARK / HG11
2 x Tyre - Pirelli P ZERO RACE TLR, 700x28
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail W. F/RD Seat Clamp Adapter Kit
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x95
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X95 Mm
1 x Frameset - F/RD / Size: 48 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black With Saddle Clamp
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x HS Top Cover - F/RD3 Full Intergraded TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Frameset - F/RD / Size: 48 / Color: Black Metal
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Seatpost Wedge - RD3 SP WEDGE For 48/ 54, AL6061-T6, BLACK, F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Frame - F/RD3 / Color: Black Metal / Size: 48
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x String - Faux Leather, Black
1 x Fork - F/RD3 / Color: Black Metal / Offset: 53mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Groupset - Shimano Dura Ace R9270 Di2 / Crank Length: 170mm / Gear Ratio: 52/36T W. 11-30T / BB Type: T47-85.5
1 x Bottom Bracket - CeramicSpeed T47 85.5mm 24mm Shimano
1 x Front Derailleur - FDR9250 F
1 x Front Chainring - FCR9200 170mm, 36X52T
1 x Cassette - CSR8100 123456791470, 11-30T 12s
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
1 x Brake/shift Set - R9270 R9270D LN R0 E RR RFG0 L 1700mm
2 x Disc Brake Rotor - RTMT900SS 140mm
1 x Chain - CNM9100 118 L Q
1 x Rear Derailleur - RDR9250
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Di2 Battery - BTDN300
1 x Brake/shift Set - R9270 R9270D LN L0 B LF RF00 L 1000mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 51cm
1 x BORA WTO 45 DB 2WF DARK / HG11
2 x Tyre - Pirelli P ZERO RACE TLR, 700x28
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x95
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X95 Mm
1 x Frameset - F/RD / Size: 51 / Cockpit Integration: Integrated / Color: Black Metal
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x HS Top Cover - F/RD3 Full Intergraded TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black With Saddle Clamp
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black
1 x Frameset - F/RD / Size: 51 / Color: Black Metal
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x String - Faux Leather, Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Frame - F/RD3 / Color: Black Metal / Size: 51
1 x Seatpost Wedge - RD3 SP WEDGE For 51 , AL6061-T6, BLACK, F/ Icon
1 x Fork - F/RD3 / Color: Black Metal / Offset: 53mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail W. F/RD Seat Clamp Adapter Kit
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Groupset - Shimano Dura Ace R9270 Di2 / Crank Length: 172.5mm / Gear Ratio: 52/36T W. 11-30T / BB Type: T47-85.5
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Rear Derailleur - RDR9250
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Front Chainring - FCR9200 172.5mm, 36X52T
1 x Brake/shift Set - R9270 R9270D LN L0 B LF RF00 L 1000mm
1 x Cassette - CSR8100 123456791470, 11-30T 12s
1 x Front Derailleur - FDR9250 F
1 x Bottom Bracket - CeramicSpeed T47 85.5mm 24mm Shimano
1 x Chain - CNM9100 118 L Q
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Di2 Battery - BTDN300
1 x Brake/shift Set - R9270 R9270D LN R0 E RR RFG0 L 1700mm
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 54cm
1 x Groupset - Shimano Dura Ace R9270 Di2 / Crank Length: 172.5mm / Gear Ratio: 52/36T W. 11-30T / BB Type: T47-85.5
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Rear Derailleur - RDR9250
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Front Chainring - FCR9200 172.5mm, 36X52T
1 x Brake/shift Set - R9270 R9270D LN L0 B LF RF00 L 1000mm
1 x Cassette - CSR8100 123456791470, 11-30T 12s
1 x Front Derailleur - FDR9250 F
1 x Bottom Bracket - CeramicSpeed T47 85.5mm 24mm Shimano
1 x Chain - CNM9100 118 L Q
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Di2 Battery - BTDN300
1 x Brake/shift Set - R9270 R9270D LN R0 E RR RFG0 L 1700mm
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail W. F/RD Seat Clamp Adapter Kit
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x110
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X110 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Frameset - F/RD / Size: 54 / Cockpit Integration: Integrated / Color: Black Metal
1 x HS Top Cover - F/RD3 Full Intergraded TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Frameset - F/RD / Size: 54 / Color: Black Metal
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Frame - F/RD3 / Color: Black Metal / Size: 54
1 x Seatpost Wedge - RD3 SP WEDGE For 48/ 54, AL6061-T6, BLACK, F/ Icon
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x String - Faux Leather, Black
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Fork - F/RD3 / Color: Black Metal / Offset: 45mm
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black With Saddle Clamp
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x BORA WTO 45 DB 2WF DARK / HG11
2 x Tyre - Pirelli P ZERO RACE TLR, 700x28
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x BORA WTO 45 DB 2WF DARK / HG11
2 x Tyre - Pirelli P ZERO RACE TLR, 700x28
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail W. F/RD Seat Clamp Adapter Kit
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x110
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X110 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Groupset - Shimano Dura Ace R9270 Di2 / Crank Length: 172.5mm / Gear Ratio: 52/36T W. 11-30T / BB Type: T47-85.5
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Rear Derailleur - RDR9250
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Front Chainring - FCR9200 172.5mm, 36X52T
1 x Brake/shift Set - R9270 R9270D LN L0 B LF RF00 L 1000mm
1 x Cassette - CSR8100 123456791470, 11-30T 12s
1 x Front Derailleur - FDR9250 F
1 x Bottom Bracket - CeramicSpeed T47 85.5mm 24mm Shimano
1 x Chain - CNM9100 118 L Q
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Di2 Battery - BTDN300
1 x Brake/shift Set - R9270 R9270D LN R0 E RR RFG0 L 1700mm
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
1 x Frameset - F/RD / Size: 56 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black With Saddle Clamp
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black
1 x HS Top Cover - F/RD3 Full Intergraded TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Frameset - F/RD / Size: 56 / Color: Black Metal
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x String - Faux Leather, Black
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Frame - F/RD3 / Color: Black Metal / Size: 56
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Fork - F/RD3 / Color: Black Metal / Offset: 45mm
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Seatpost Wedge - RD3 SP WEDGE For 56/ 59, AL6061-T6, BLACK, F/ Icon
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x BORA WTO 45 DB 2WF DARK / HG11
2 x Tyre - Pirelli P ZERO RACE TLR, 700x28
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 60mm
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 440x110
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 440X110 Mm
1 x Groupset - Shimano Dura Ace R9270 Di2 / Crank Length: 172.5mm / Gear Ratio: 52/36T W. 11-30T / BB Type: T47-85.5
1 x Di2 Misc - EW-EC300 - Charging Cable
1 x Brake Caliper Adapter - SM-MA SMMA-R 160 D/D
1 x Rear Derailleur - RDR9250
1 x Di2 Misc - EW-SD300-I E-Tube 1200MM
1 x Front Chainring - FCR9200 172.5mm, 36X52T
1 x Brake/shift Set - R9270 R9270D LN L0 B LF RF00 L 1000mm
1 x Cassette - CSR8100 123456791470, 11-30T 12s
1 x Front Derailleur - FDR9250 F
1 x Bottom Bracket - CeramicSpeed T47 85.5mm 24mm Shimano
1 x Chain - CNM9100 118 L Q
2 x Disc Brake Rotor - RTMT900S 160mm
1 x Di2 Battery - BTDN300
1 x Brake/shift Set - R9270 R9270D LN R0 E RR RFG0 L 1700mm
1 x Di2 Misc - EW-SD300-I E-Tube 700MM
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail W. F/RD Seat Clamp Adapter Kit
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Frameset - F/RD / Size: 59 / Cockpit Integration: Integrated / Color: Black Metal
1 x HS Top Cover - F/RD3 Full Intergraded TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Frameset - F/RD / Size: 59 / Color: Black Metal
1 x Frame - F/RD3 / Color: Black Metal / Size: 59
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Fork - F/RD3 / Color: Black Metal / Offset: 45mm
1 x String - Faux Leather, Black
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Seatpost Wedge - RD3 SP WEDGE For 56/ 59, AL6061-T6, BLACK, F/ Icon
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black With Saddle Clamp
1 x Seatpost - RD3, Aeroval CARBON MONOCOQUE ROAD Seatpost POST,UD, Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

F/Road Dura-Ace

$ 9,499
When only the best will do, we’ve selected all of our top-shelf components to build the F/Road Dura-Ace. Featuring the silky smooth shifting of Shimano's top-tier Dura-Ace groupset for ultra quick shifting and transfering power through the Campagnolo BORA wheelset wheelset with the ceramic USB cup-and-cone bearing system and finished with our own carbon fiber integrated barstem, this build is an ultra-clean wind cheater that is also light enough to take on the fiercest of mountain passes.

• Approximate weight: 7.5kg (Size Dependent)
• Shimano Dura-Ace R9270 12sp Wireless Electronic Groupset
• Campagnolo BORA WTO 45 DB wheelset

Material Carbon
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

XS / 48cm

SOLD OUT
Notify me
S / 51cm

SOLD OUT
Notify me
M / 54cm

SOLD OUT
Notify me
L / 56cm

SOLD OUT
Notify me
XL / 59cm

SOLD OUT
Notify me

Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: XS / 48cm: BIFARD348BLT-2. S / 51cm: BIFARD351BLT-2. M / 54cm: BIFARD354BLT-2. L / 56cm: BIFARD356BLT-2. XL / 59cm: BIFARD359BLT-2.

The details

Features
• Lightweight TorayTM Carbon fiber frame
• NACA Airfoil tube
• Truncated NACA airfoils for optimal weight
• Aero-optimised fork legs
• Full internal cable routing
• All-round capabilities with 32mm tire clearance
• Hidden aero seat-post wedge
• Reversible aero seat post
• Intuitive fit road geometry
• T47 bottom bracket
• Curved seat-stays for increased comfort
• Cable routing for mechanical and electronic shifting
• UCI approved
F/Road in strand with ZIP wheels and SRAM red
Size
5 sizes from 48cm to 59cm fit nearly every rider.

Whether you are 160cm or 200cm, the five size options can be adapted to provide you with optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size.

Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
48 cm
160 — 170 cm
51 cm
165 — 175 cm
54 cm
173 — 183 cm
56 cm
178 — 188 cm
59 cm
185 — 199 cm
Geometry
Size XS
48cm
S
51cm
M
54cm
L
56cm
XL
59cm
A. Stand-over height 727mm751mm768mm804mm834mm
B. Front centre 568mm578mm584mm587mm608mm
C. Rear centre 408mm408mm410mm410mm410mm
D. Wheel base 976mm986mm994mm997mm1018mm
E. Top tube length 512mm528mm547mm567mm588mm
F. Stack 505mm523mm545mm567mm596mm
G. Reach 372mm378mm386mm394mm406mm
H. Head stack 108mm126mm144mm166mm195mm
I. Seat tube angle 75°74°73°73°73°
J. Head tube angle 71°72°73°73°73°
K. BB Center to the top
of the seat tube
446mm475mm482mm531mm562mm
L. Max Seatpost insertion 140mm160mm160mm160mm160mm
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More

Inbox adventures!

Get exclusive offers, product news and inspiring stories.
Join our newsletter.

By signing up for our newsletter you agree to receive exclusive offers and relevant information.
You can unsubscribe at any time by using the link at the bottom of any newsletter.
