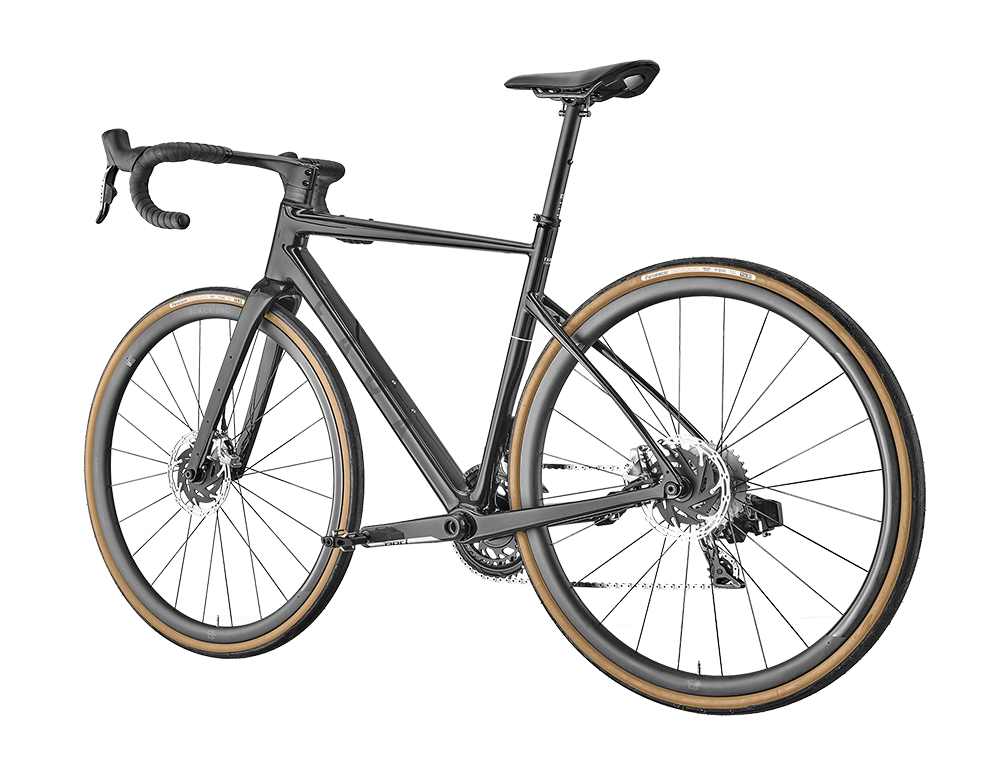

F/All-Road Red AXS Black Metal
F/AR is compatible with tires up to 38mm (measured width)
Technical Specifications

• Saddle - VENTO ARGO R1 - 140mm, Carbon Rail
• Wheelset - Black Inc Thirty AR 700c

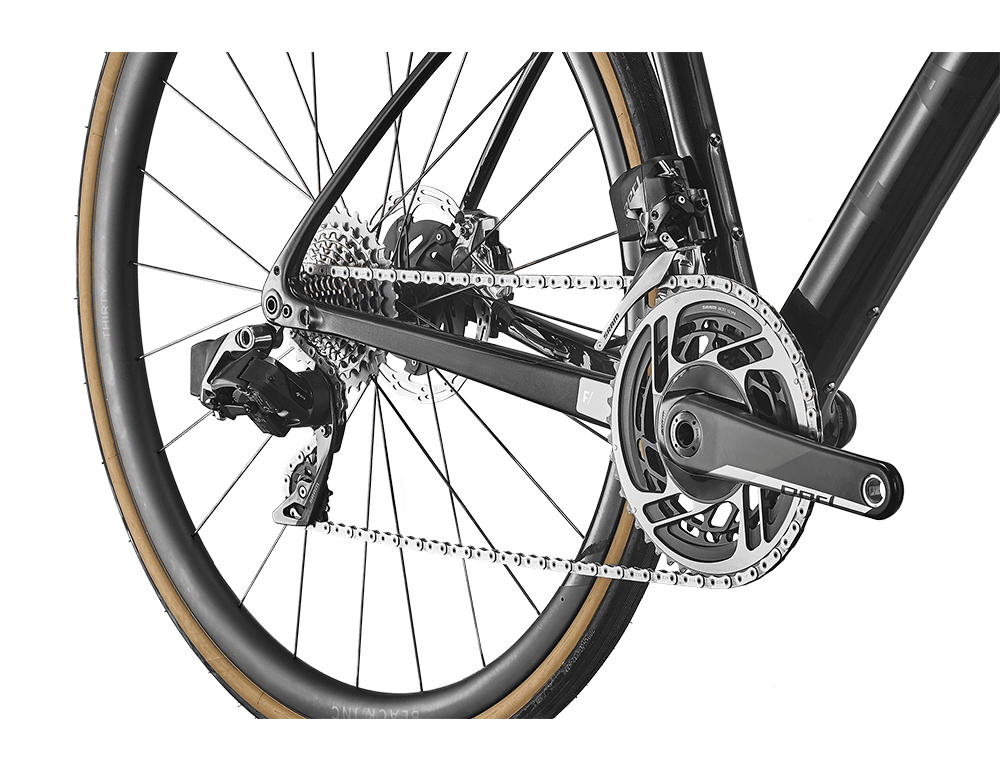

• Groupset - SRAM Red AXS 2x12s

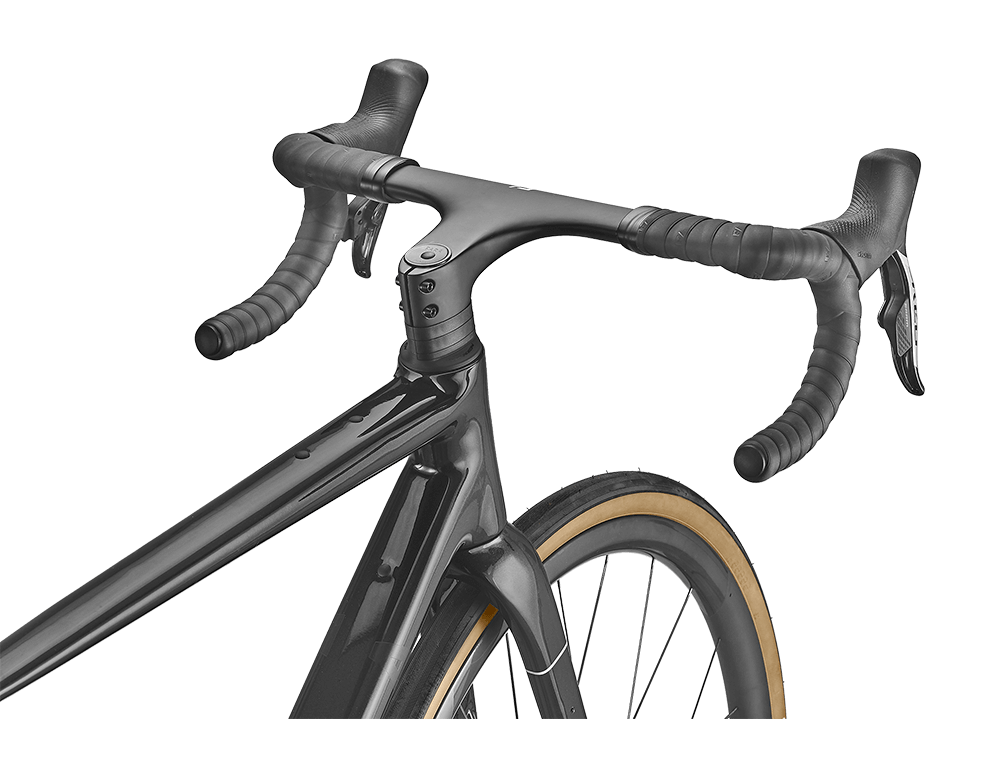

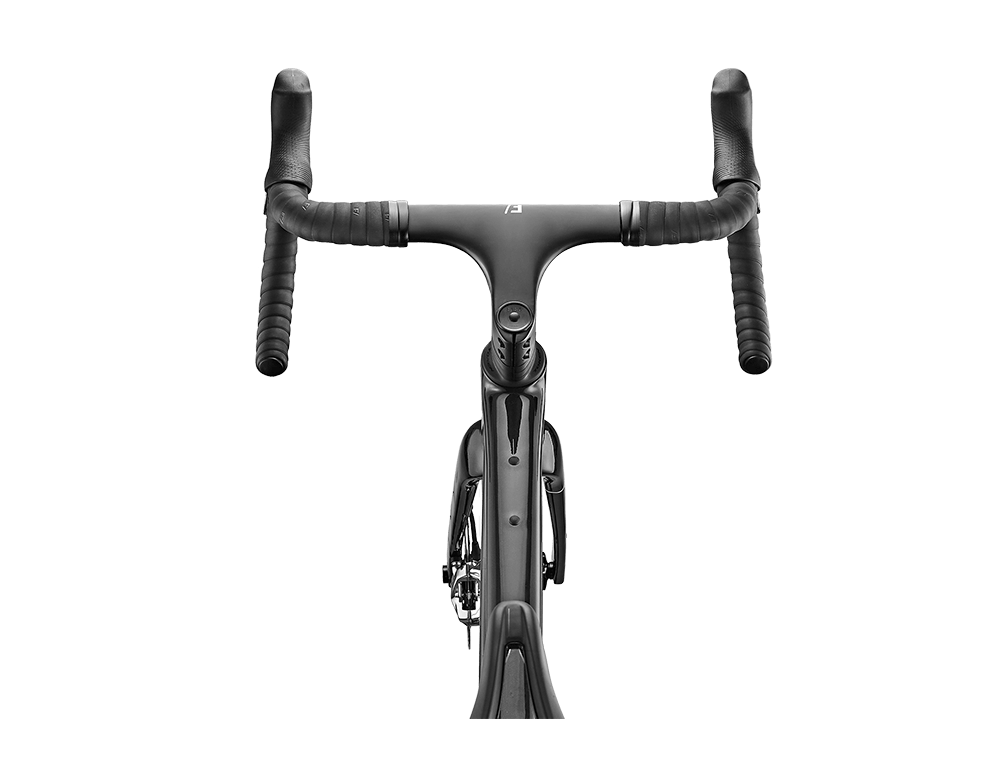

• Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM (Taishan)
• Frameset - F/AR (w. Hw, Cockpit Specific Headset)

Size Specific Specification: 49cm
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Wheelset - Black Inc Thirty AR 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Groupset - SRAM Red AXS 2x12s / Crank Length: 170mm / Gear Ratio: 48/35T W. 10-33T / BB Type: BB386
1 x Cassette - XG 1290 D1 10-33
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Bottom Bracket - CeramicSpeed BB386 29mm DUB
1 x Front Derailleur - RED ETAP AXS D1 BRAZE
1 x Chain - RED D1 12S 120LINK
2 x Disc Brake Rotor - ROTOR CLX CENTERLOCK 160 BLK ROUNDED - RIVAL
1 x Rear Derailleur - RED ETAP AXS D1 MAX 33T
1 x Brake/shift Set - RED ETAP AXS D1 SJD REAR/RT F20 1800
1 x Brake/shift Set - RED ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Front Chainring - RED D1 DUB 170 48/35
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x95
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X95 Mm
1 x Frameset - F/AR / Color: Wet Asphalt / Size: 49 / Cockpit Integration: Integrated
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Frameset - F/AR / Color: Wet Asphalt / Size: 49
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Wet Asphalt
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Frame - F/AR2 / Color: Wet Asphalt / Size: 49
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
1 x Fork - F/AR2 / Color: Wet Asphalt / Offset: 56mm
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-BOX Top Cover Water Seal
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
1 x Frameset - F/AR / Color: Wet Asphalt / Size: 53 / Cockpit Integration: Integrated
1 x Headset Parts - A-BOX Top Cover Water Seal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Frameset - F/AR / Color: Wet Asphalt / Size: 53
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Fork - F/AR2 / Color: Wet Asphalt / Offset: 50mm
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Frame - F/AR2 / Color: Wet Asphalt / Size: 53
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Wet Asphalt
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Headset Parts - Cable Box Compression Ring For A-BOX Incl. Transparent Microspacer TK003
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
2 x Headset Parts - CeramicSpeed OHD Bearing SS 40x52x7mm 45/45° 1pcs
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Wheelset - Black Inc Thirty AR 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Groupset - SRAM Red AXS 2x12s / Crank Length: 172.5mm / Gear Ratio: 48/35T W. 10-33T / BB Type: BB386
1 x Bottom Bracket - CeramicSpeed BB386 29mm DUB
1 x Cassette - XG 1290 D1 10-33
2 x Disc Brake Rotor - ROTOR CLX CENTERLOCK 160 BLK ROUNDED - RIVAL
1 x Chain - RED D1 12S 120LINK
1 x Front Chainring - RED D1 DUB 172,5 48/35
1 x Brake/shift Set - RED ETAP AXS D1 SJD REAR/RT F20 1800
1 x Brake/shift Set - RED ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Front Derailleur - RED ETAP AXS D1 BRAZE
1 x Rear Derailleur - RED ETAP AXS D1 MAX 33T
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x110
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X110 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
1 x Wheelset - Black Inc Thirty AR 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Groupset - SRAM Red AXS 2x12s / Crank Length: 172.5mm / Gear Ratio: 48/35T W. 10-33T / BB Type: BB386
1 x Bottom Bracket - CeramicSpeed BB386 29mm DUB
1 x Cassette - XG 1290 D1 10-33
2 x Disc Brake Rotor - ROTOR CLX CENTERLOCK 160 BLK ROUNDED - RIVAL
1 x Chain - RED D1 12S 120LINK
1 x Front Chainring - RED D1 DUB 172,5 48/35
1 x Brake/shift Set - RED ETAP AXS D1 SJD REAR/RT F20 1800
1 x Brake/shift Set - RED ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Front Derailleur - RED ETAP AXS D1 BRAZE
1 x Rear Derailleur - RED ETAP AXS D1 MAX 33T
1 x Frameset - F/AR / Size: 56 / Cockpit Integration: Integrated / Color: Black Metal
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Frameset - F/AR / Size: 56 / Color: Black Metal
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Frame - F/AR2 / Color: Black Metal / Size: 56
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x110
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X110 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
1 x Groupset - SRAM Red AXS 2x12s / Crank Length: 172.5mm / Gear Ratio: 48/35T W. 10-33T / BB Type: BB386
1 x Bottom Bracket - CeramicSpeed BB386 29mm DUB
1 x Cassette - XG 1290 D1 10-33
2 x Disc Brake Rotor - ROTOR CLX CENTERLOCK 160 BLK ROUNDED - RIVAL
1 x Chain - RED D1 12S 120LINK
1 x Front Chainring - RED D1 DUB 172,5 48/35
1 x Brake/shift Set - RED ETAP AXS D1 SJD REAR/RT F20 1800
1 x Brake/shift Set - RED ETAP AXS D1 SJD FRT/LFT F20 1000
1 x Battery/charger Set - POWERPACK 2 BATTERY / Type: 1 Charger + 2 Battery
1 x Front Derailleur - RED ETAP AXS D1 BRAZE
1 x Rear Derailleur - RED ETAP AXS D1 MAX 33T
1 x Saddle - VENTO ARGO R1 - 140mm, Carbon Rail / Bicycle Model: F/AR & F/GR
1 x Cockpit - Fara Cycling CARBON MONOCOQUE ROAD BARSTEM / Size: 420x110
1 x Barstem - F/ Carbon ROAD BARSTEM/ Black/ 420X110 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Frameset - F/AR / Size: 59 / Cockpit Integration: Integrated / Color: Black Metal
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Frameset - F/AR / Size: 59 / Color: Black Metal
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
1 x Fork - F/AR2 / Color: Black Metal / Offset: 50mm
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x Frame - F/AR2 / Color: Black Metal / Size: 59
1 x Bridge - F/AR, AL6061, CNC, Anodized Deep Sliver
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Wheelset - Black Inc Thirty AR 700c / Frame Model: F/AR / Groupset: SRAM / Tyre Size/type: 32SL
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
2 x Tyre - Panaracer GRAVEL KING SL TLR Brown Wall - Slick / Tyre Size: 700x32SL
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

F/All-Road Red AXS

$ 8,454
NOTICE: LEGACY PRODUCT - will not be restocked. Our current lineup of products is available here

The ultimate machine for mixed surface riding, the F/All-Road Red AXS is built with components of the highest level, ready to tackle long days in the saddle and even a little bit of the rough stuff. SRAM's RED AXS groupset offers unparalleled versatility and pairs perfectly with BlackInc's CeramicSpeed equipped Thirty AR carbon wheels. This bike is truly the one bike that can do it all: from fast group rides with your friends to dirt roads for days, thanks to its responsive carbon fiber frame and 38mm tire clearance. All this combined with adventure-ready functionality like the integrated bikepacking system and multiple gear attachment points.

• Approx. Weight: 8.4kg (Size Dependent)
• SRAM Red AXS Groupset
• BlackInc Thirty AR CS Carbon Wheelset

Material Carbon
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

S / 49cm

SOLD OUT
Notify me
M / 53cm

SOLD OUT
Notify me
L / 56cm

SOLD OUT
Notify me
XL / 59cm

SOLD OUT
Notify me


Compatible accessories

Fara water bottle bundle
Water Bottle Bundle $ 90 Add to cart
Fara water bottle bundle
Water Bottle Bundle $ 90 Add to cart
Fara rear derailleur mount - all models
Fara Rear Derailleur Mount (2021-) $ 28 Add to cart
BikeFinder GPS tracker
BikeFinder GPS tracker $ 157 Add to cart
Look Keo2Max Pedals
Keo2Max Pedals $ 128 Add to cart
Candy 3 Black - pedals (2-hole cleat compatible)
Candy 3 Black Pedals $ 142 Add to cart
Double Shot 1 Black Pedals
Double Shot 1 Black Pedals $ 56 Add to cart
Shimano Ultegra PD-R8000 SPD-SL (3-hole cleat compatible)
Ultegra PD-R8000 SPD-SL $ 185 Add to cart
Fara Cycling Integrated Bikepacking Bag Bundle
Integrated Bag Bundle $ 360 Add to cart
Saddle Bag
Integrated Saddle Pack $ 161 Add to cart
Fara Integrated Frame Bag | Seamless & Waterproof Bikepacking Solution
Integrated Frame Bag $ 94 Add to cart
Handlebar Bag
Handlebar Bag $ 142 Add to cart
F/All-Road Downtube protector
Downtube protector $ 29 Add to cart
Fara Cycling F/All-Road Fender Set, incl Mounting Hardware
F/All-Road Fender Set $ 68 Add to cart


Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: BIFAAR2490WAT. M / 53cm: BIFAAR2530WAT. L / 56cm: BIFAAR2560BLT. XL / 59cm: BIFAAR2590BLT.
Recently viewed
See all our accessories

Fara Cycling
Handlebar bag

NOK 1 490,-
Looking for a top-end gravel bike that’s resigned. .
Material Carbon
Estimated weight 9.42 kg
Read More
