-25%
Carbon handlebars & wheels
Technical Specifications

• Frameset - F/GR (w. Hw, Cockpit Specific Headset)
• Groupset - SRAM Force AXS XPLR D2 WIDE 1x12s - NEW
• Wheelset - RAPID RED CARBON 700c DB
• Cockpit - F/ Carbon ROAD BARSTEM Mk.2
• Bottom Bracket - Token T47V29-TS T47
• Saddle - Fizik TERRA ARGO X5 - 150mm

Size Specific Specification: 49cm
1 x Frameset - F/GR / Color: Black Metal / Size: 49 / Cockpit Integration: Integrated
2 x Headset Spacer - A-BOX Plastic Spacer, 10mm , Black
1 x Headset Spacer - A-BOX Plastic Spacer, 5mm , Black
1 x Headset Parts - A-Box Headset Parts, W/o Top Cover - Seal Of Top Cover, Compression Ring PA+GF, 1.5" Sealed Bearings *2pcs For 45deg.
1 x HS Top Cover - F/AR F/GR Full Intergraded A-Box Headset TOP COVER/ Nylon+ Carbon Fiber/ Black
1 x Frameset - F/GR / Size: 49 / Color: Black Metal
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x162XP1.5x13
1 x Tools - Torque Wrench Karmic 4Nm, 3/4/5/6mm Bits
1 x FD Hanger - AL6061 T6, NEW Anodized Deep Silver
1 x RD Hanger - AL6061, CNC, Anodized Deep Silver
2 x Frame Plug - Plug For Internal Frame Routing/ SHIMANO Ultra Di2 EW-SD300 2.4mm
1 x Seatpost Clamp - TK1613 Super Lite Clamp/AL/ Size: 31.8 Mm Color: Black With Black Nut/ F/ Icon
3 x Foam Tube - Foam Tube/ OD Ø10*ID Ø6 / L800mm
1 x Fork - F/GR3 / Color: Black Metal
1 x Rolling Tool Bag/ FARA Cycling Logo
1 x Thru Axle Lever - Switch Lever SL-A Pocketing, Slotted, Allen 6/4mm
1 x Bridge - F/GR, AL6061, CNC, Anodized Deep Sliver
1 x Frame - F/GR3 / Color: Black Metal / Size: 49
1 x Stash Hatch - F/GR3 Stash Hatch / Black W/ F/ Icon
2 x Frame Plug - Plug For Internal Frame Routing/ Close Type/ NBR/ Black
2 x Frame Plug - Plug For Internal Frame Routing/ 4mm Derailleur Housing
1 x Thru Axle - Switch Compatiable TA Lite- FARA Cycling TA12x122XP1.5x13
1 x Stash Hatch - F/GR3 Stash Hatch Bag / Black W/ F/ Icon
1 x FD Blind For 1x Build, No Screw. UD Carbon / Color: Black Metal
1 x Seatpost - FARA Seatpost Carbon 2-flex Zone, 15mm Offset, 27.2mm*370mm, Black, Includes M5 Insert For Fidlock
1 x Expander - Token - Expander W. Top Cap F/ Logo Alu
1 x Groupset - SRAM Force AXS XPLR D2 WIDE 1x12s - NEW / Crank Length: 170mm / Gear Ratio: 44T W. 10-44T / BB Type: Standalone
1 x Battery/charger Set - POWERPACK 1 BATTERY / Type: 1 Charger + 1 Battery
1 x Brake/shift Set - FORCE AXS D2 SJD FRT/LFT F20 1000
1 x Cassette - XG 1271 FORCE D1 XPLR 10-44
1 x Chain - FORCE D1 12S 120LI
1 x Front Chainring - Force 1 D2 DUB WIDE DM 44T / Crank Length: 170mm
1 x Brake/shift Set - FORCE AXS D2 SJD REAR/RT F20 1800
2 x Disc Brake Rotor - DB ROTOR CENTERLOCK PACELINE 160 ROUNDED
1 x Rear Derailleur - FORCE XPLR AXS D2 MAX 44T
1 x Wheelset - RAPID RED CARBON 700c DB / Frame Model: F/GR / Groupset: SRAM / Tyre Size/type: 43SK
2 x Tyre - Panaracer GRAVEL KING SK+ - Knobby, 700x43
1 x RAPID RED CARBON 2WF C25 AFS / HG11
2 x Inner Tube - SCHWALBE SV17 28/47 622-635 OEM 40mm
1 x Cockpit - F/ Carbon ROAD BARSTEM Mk.2 / Size: 400 X 90 Mm
1 x Handlebar Tape - Silic1 F/ Logo Handlebar Tape Black
1 x Barstem - F/ Carbon ROAD BARSTEM Mk.2 /Black/ / Size: 400 X 90 Mm
1 x Bottom Bracket - Token T47V29-TS T47
1 x Saddle - Fizik TERRA ARGO X5 - 150mm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 53cm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 56cm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Size Specific Specification: 59cm
Please Note: Specifications may vary depending on availability of components. Fara Cycling reserves the right to replace individual components with components of equivalent or higher value. Bikes are NOT supplied with pedals. Pedals are available to purchase separately.
Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

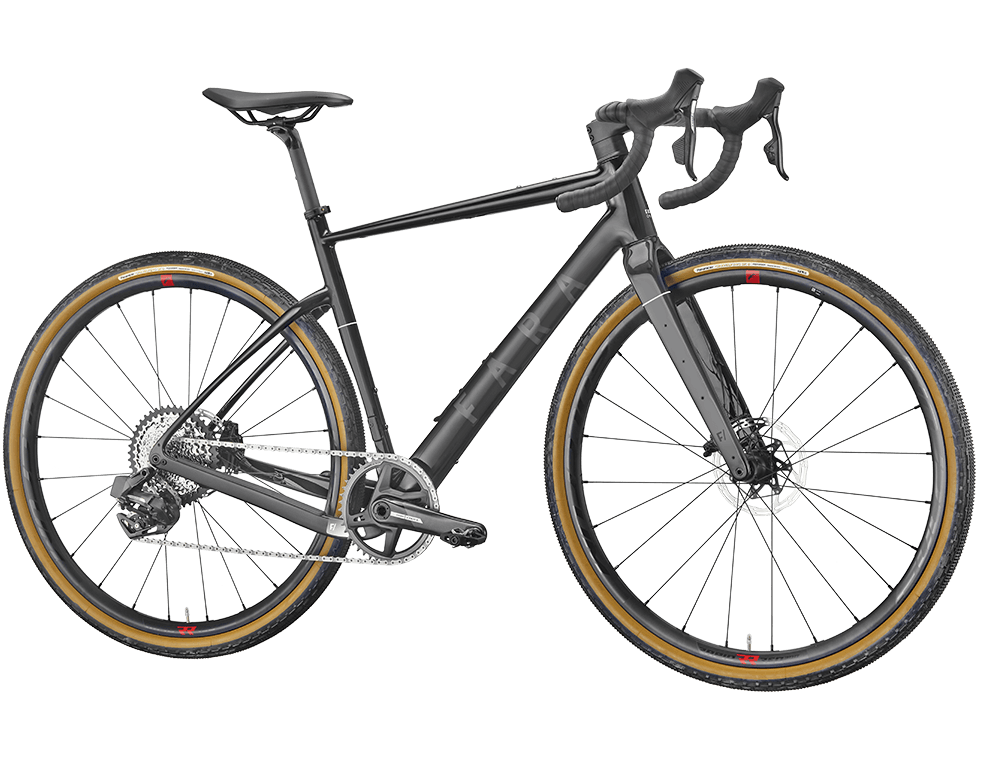

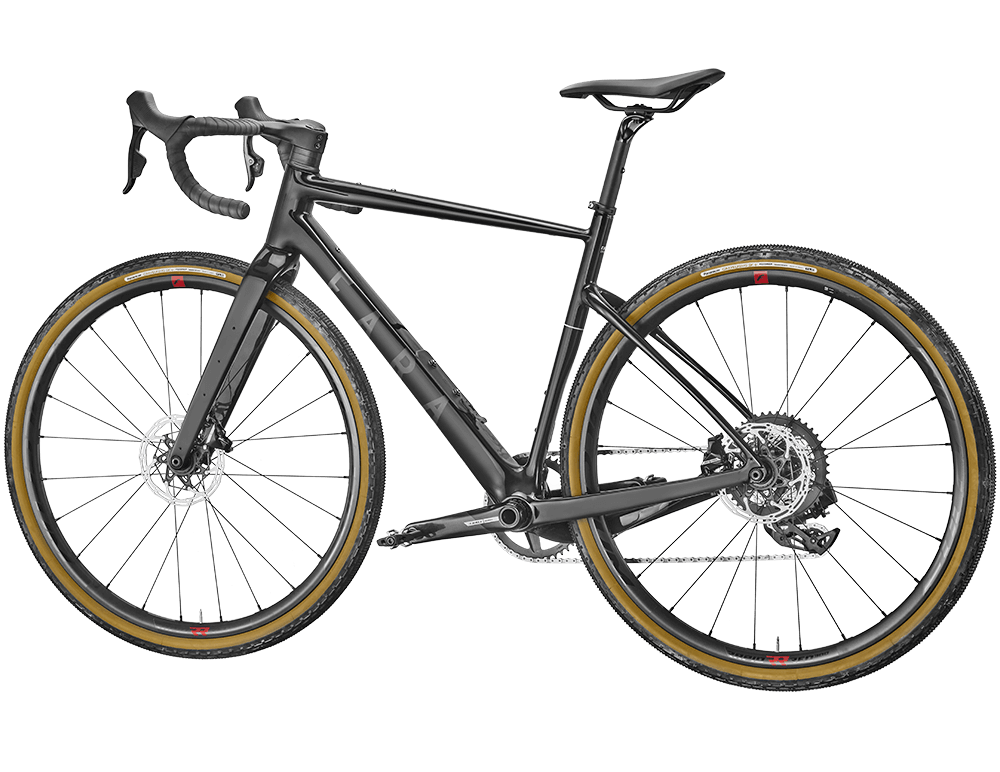

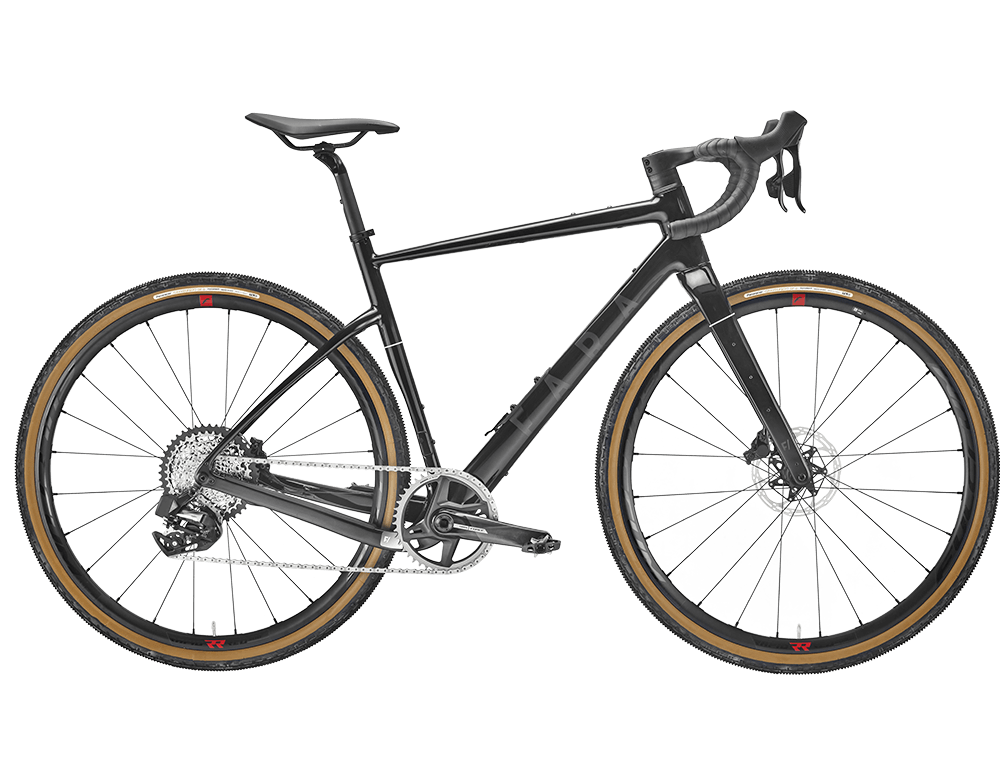

F/Gravel Force XPLR AXS ´24

-25%
NOK 59,990
NOK 44,990
The F/Gravel is our go anywhere, ride anything, adventure bike. Ultimately, it can handle nearly any type of off-road riding you feel comfortable throwing at it. It has nimble handling and 50mm tyre clearance, meaning you can cover rough terrain with confidence and in relative comfort.

While it will breeze over a tarmac transfer with ease to get you to that next gravel section, it's certainly not most at home on the road. If you rarely ride technical terrain or rough, chunky gravel then our F/All-Road bike would probably be a more suitable option as it's better designed for dirt roads and has better tarmac capabilities.

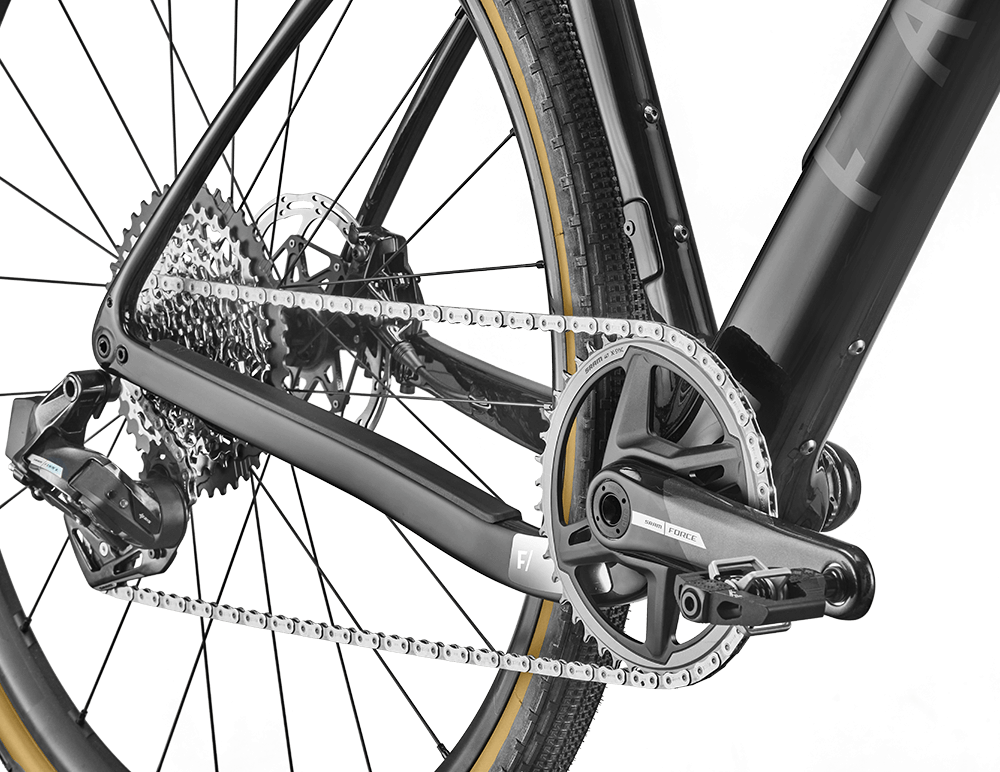

SRAM Force XPLR 1x is a gravel-specific groupset with electronic shifting. A premium offering from SRAM for gravel adventures and racing. You get a wide range of gears to get you up steep gravel climbs and go fast on the flats.

With its integrated baggage system, stash hatch and full set of mounts the F/Gravel is perfect for bikepacking. The limits of its range are nearly endless.


• Fulcrum Rapid Red Carbon gravel-specific wheelset

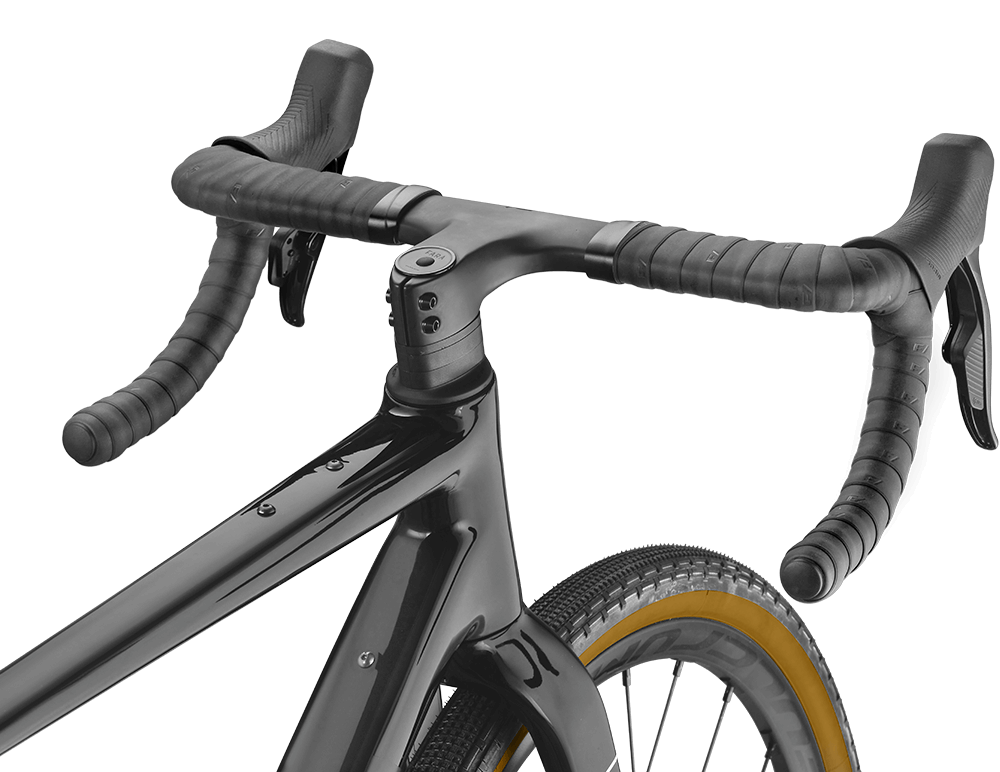

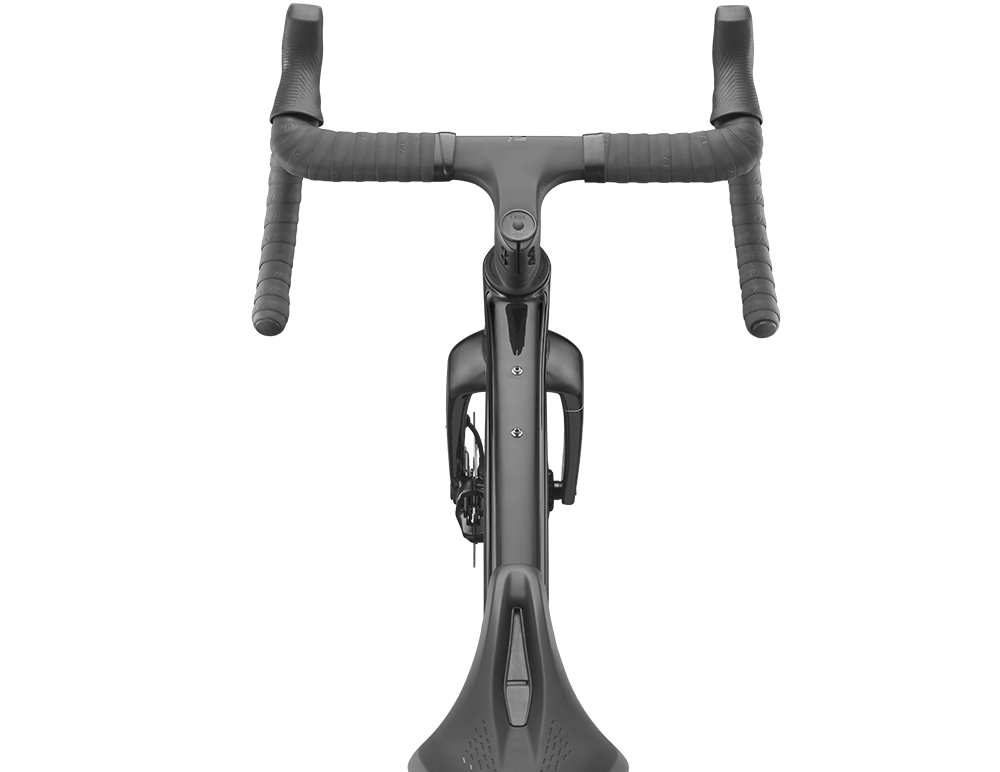

• Integrated carbon handlebars
• Full internal cable routing
• Up to 50mm tires
• 1050g frame weight

Material Carbon
Color

Reviews
4.5
Overall rating
Apr 29th 2020
I recently received my F Gravel. Albeit some delays due to coronavirus, all I can say is I found pure excellence in customer experience from pre-purchase inquiries through to the purchase process and the quality of the bike. The team has been super helpful and reactive, and the bike is amazing. The combination with the 650b wheels makes an amazingly comfortable and fast ride. Maybe I’m also putting in a bit more effort bc the bike deserves it 😜 Needless to say, heads turn on the street non-stop
Javier Arbizu
Feb 8th 2023
I bought a F/Gravel from Fara Cycling in the Signature Phylite colour. It really is a beautiful bike, the paint job is incredible. But the build quality is also top notch. I chose an Ekar drive train from Campagnola and Fulcrum wheels. Its possible to spec the bike exactly the way you want it or they also have an off the rack pre built setup as well. It took a while to get the bike but it was worth the wait. The ride is beautiful, Im delighted with it.
Peter Levenspiel – United Kingdom
Nov 25th 2016
Fara is a trusted bike in all opinion you have on a bike, its tight in frame and wen you take a tripp on non asfalt way. Breaks 100% i am on this bike every day 2 weeks, , wen i test a new bike in the collection. i give this bike 5/5. i am impressd of Fara s Gemonotri, just one thing, impressed 5/5.
Jo Nordskar – Norway
July 22nd 2020
Bare hyggelige folk og deilig kaffe i butikken😀 Support your LBS!
Thomas Rem
January 30th 2019
Utrolig fin sykkel både å sykle og å se på, mange tilpasnings muligheter!
Adrian Kvernbråten

Which bike is right for me?

Select size Size guide

S / 49cm

SOLD OUT
Notify me
M / 53cm

SOLD OUT
Notify me
L / 56cm

SOLD OUT
Notify me
XL / 59cm

SOLD OUT
Notify me


Compatible accessories

Water Bottle Bundle NOK 950 Add to cart
Fara Rear Derailleur Mount (2021-) NOK 290 Add to cart
BikeFinder GPS tracker NOK 1,649 Add to cart
Keo2Max Carbon Pedals NOK 999 Add to cart
Candy 3 Black Pedals NOK 1,490 Add to cart
Double Shot 1 Black Pedals NOK 590 Add to cart
Ultegra PD-R8000 SPD-SL NOK 1,949 Add to cart
Integrated Bag Bundle NOK 3,790 Add to cart
Integrated Saddle Pack NOK 1,690 Add to cart
Integrated Frame Bag NOK 990 Add to cart
Handlebar Bag NOK 1,490 Add to cart


Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: S / 49cm: BIFAGR3490BL1. M / 53cm: BIFAGR3530BL1. L / 56cm: BIFAGR3560BL1. XL / 59cm: BIFAGR3590BL1.

The details

Features
• Toray Carbon fibre frame and fork construction
• Frame weight 1050g weight
• Fully internal cable routing
• Curved seat stays for increased comfort
• Integrated Stash-Hatch
• Integrated Bikepacking System
• Universal 27.2mm round seatpost
• T47 Bottom bracket
• Wide tire capabilities up to 700x50mm
• Integrated fender mounts
• Triple fork cargo mounts
• Direct mount front brake for 160mm rotors
• 12mm thru axles

Size
4 sizes to fit nearly every rider

Our F/Gravel size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
49 cm
160 — 170 cm
53 cm
170 — 180 cm
56 cm
180 — 190 cm
59 cm
187 — 197 cm
Geometry
Size S
49cm
M
53cm
L
56cm
XL
59cm
A. Stand-over height 731mm762mm798mm824mm
B. Front centre 605mm618mm635mm653mm
C. Rear centre 425mm425mm425mm425mm
D. Wheel base 1017mm1028mm1043mm1061mm
E. Top tube length 532mm559mm576mm593mm
F. Stack 550mm570mm590mm610mm
G. Reach 377mm386mm396mm407mm
H. Head stack 119mm138mm159mm180mm
I. Seat tube angle 74°73°73°73°
J. Head tube angle 71°72°72°72°
K. BB Center to the top
of the seat tube
498mm521mm557mm579mm
L. Max Seatpost insertion 180mm180mm220mm240mm
