SRAM Red AXS groupset
Technical specifications:

FRAMESET (more info ):
Frame - Fara Cycling F/Road Moss Green - 48 / 51 / 54 / 56 / 59
Fork - Fara Cycling F/Road Moss Green - 53mm offset (for 48 / 51 size) / 45mm offset (for 54 / 56 / 59 size)
Headset - Fara Cycling / CeramicSpeed, 1.5"-1.5" integrated (more Info), HS top cover stack 7mm, integrated stack spacers provided 25mm (2x10mm, 1x5mm), CeramicSpeed SLT SS bearings
Thru axle - F100mm (L122mm, P1.5, Ø12mm) / R142mm (L162mm, P1.5, Ø12mm) with 6mm Allen key slot
Seatpost - proprietary "Aeroval" reversible offset seatpost, carbon fiber, with carbon rail saddle clamp adapter (more info )
Bottom bracket - CeramicSpeed T47 85.5mm, DUB (more info )

GROUPSET(more info )
Brake/shift set - SRAM Red AXS E1, LF/RR brake setup (LR/RF brake setup available based on customers location)

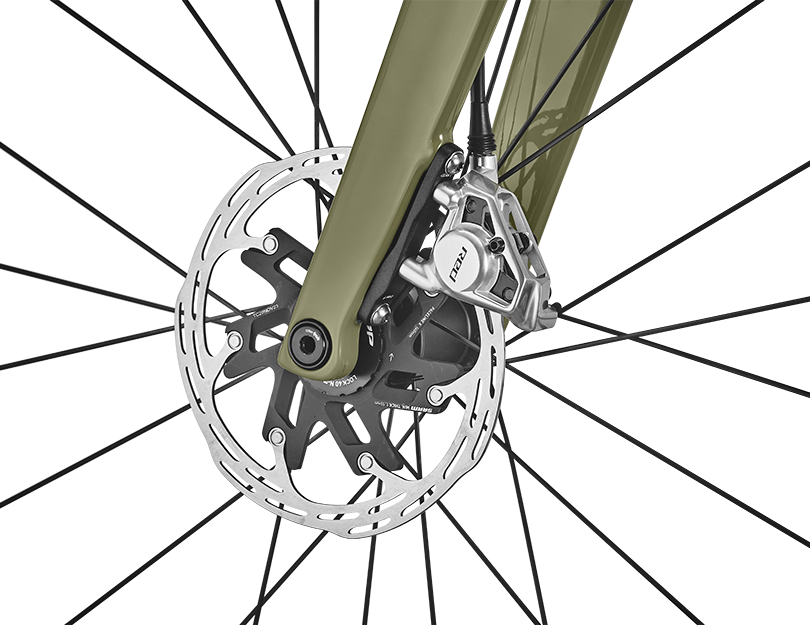

Brakes - SRAM Red AXS E1, flat mount
Brake rotors - F160mm / R160mm, centerlock

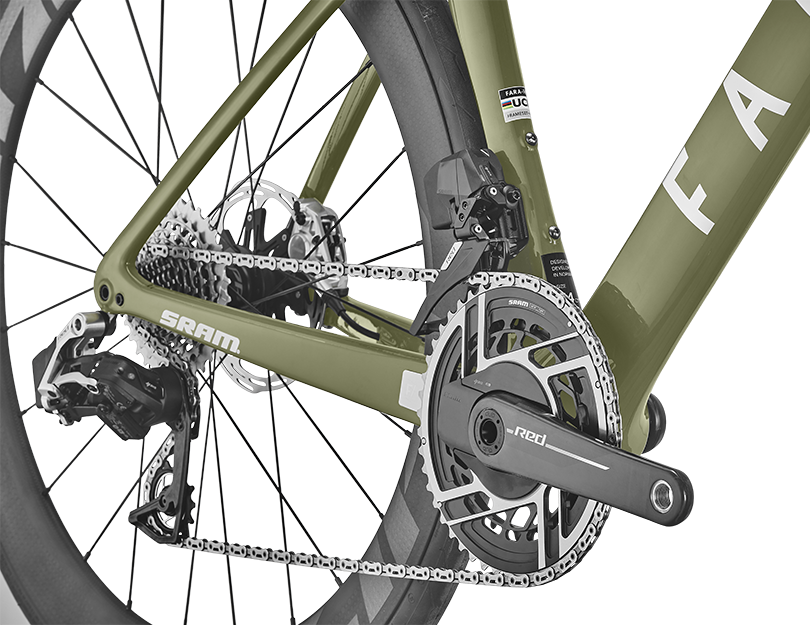

Front chainring - SRAM Red AXS E1 with integrated SRAM Power meter, 48/35T, 170mm (for 48 / 51 size) / 172.5mm (for 54 / 56 / 59 size)
Front derailleur - SRAM Red AXS E1, braze on

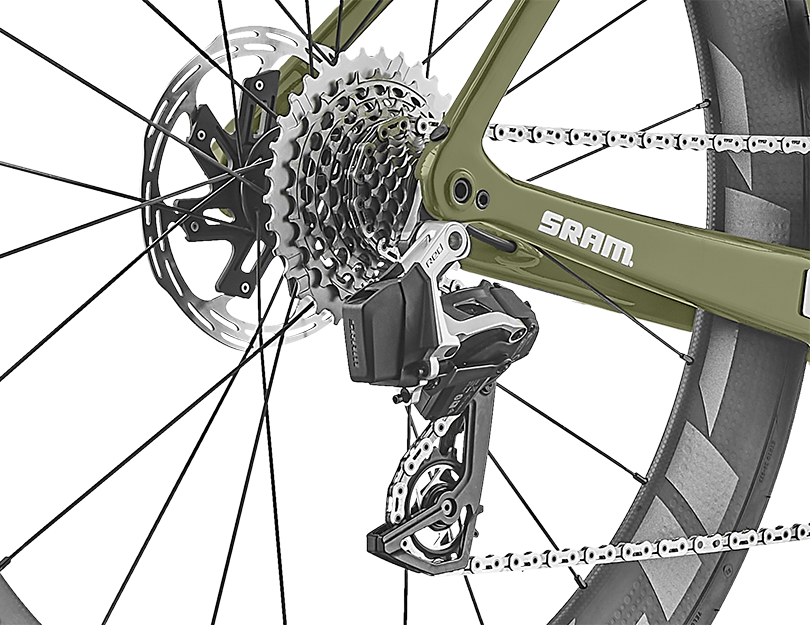

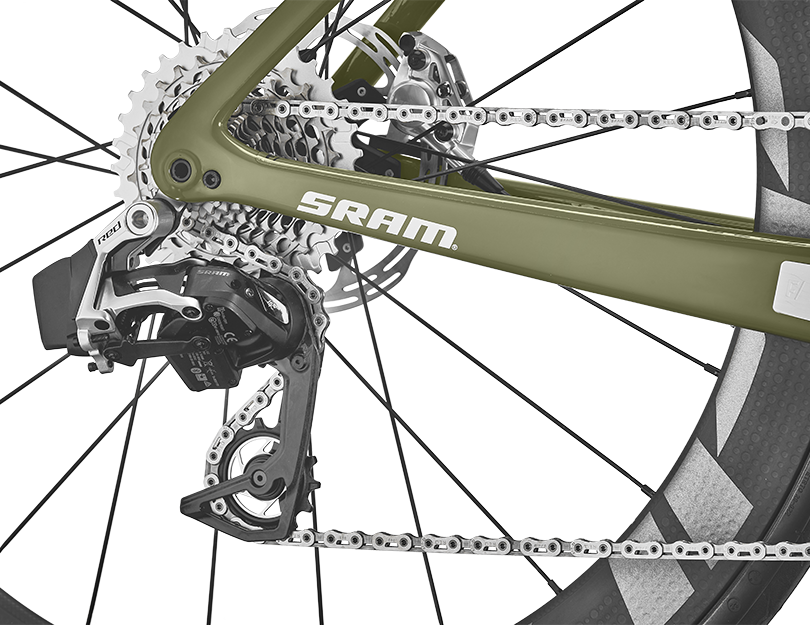

Rear derailleur - SRAM Red AXS E1, max 36T
Cassette - SRAM XG 1290 E1, 10-33T, 12s
Chain - SRAM Red E1, 12s
Powerpack - charger + 2pcs of SRAM AXS battery, charging cable included

WHEELSET (more info ):
Wheels - ZIPP 404 Firecrest, discbrake, centerlock
FW body - ZR1 for XDR FW body
Tires: Pirelli P-ZERO Race TLR 622x28, black

COCKPIT (more info):

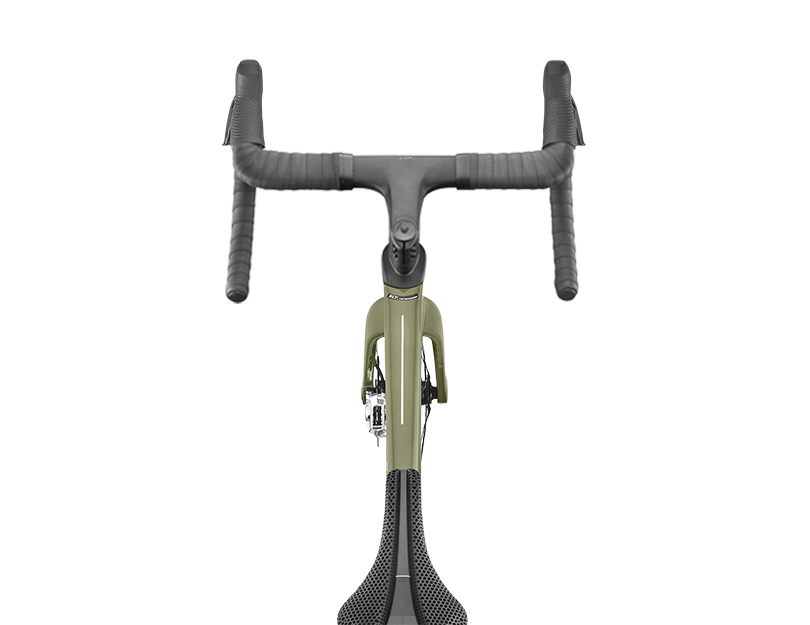

Fara Cycling Integrated Barstem Mk.2 (see available size variants in selector)

SADDLE (more info ):
Fizik - Vento ARGO R1, carbon rails, W140mm

Manual Downloads
https://faracycling.com/journal-how-to-assemble-your-fara.php

F/Road SRAM Red AXS Edition

SRAM Red AXS - Zipp 404 Firecrest - Fara Integrated barstem
NOK 99,990
We have created only 15 of this special edition F/Road as a celebration of the most technologically advanced groupset ever made. In addition to the new SRAM Red AXS groupset, this Limited Edition features the Fara Cycling Integrated Barstem Mk.2 and Zipp 404 Firecrest wheels and is finished in the unique "Moss Green" colourway with decals carefully matched to the brushed-alloy finish of the SRAM components.

F/Road SRAM RED AXS Edition
• New SRAM RED AXS groupset (48x35t, 10-33t cassette)
- Integrated SRAM dual-sided power meter
• Fara Cycling Integrated Barstem Mk.2
• CeramicSpeed bottom bracket and headset bearings
• Zipp 404 carbon wheels
- Fizik Vento Argo R1 Saddle w. Carbon Rails


The F/Road is a performance road bike designed to go the distance. It boasts a responsive and aero optimised carbon frame of 884gr, with increased vertical compliance anda geometry that hits the sweet spot between comfort and precision. It is an agile, fun and empowering bike to ride.

Total weight: ~7.2kg (size 54cm)*
exact weight may slightly vary based on size of the cockpit chosen

Rider-first ergonomics
Aero optimized and streamlined design, reduced bulkiness and clean looks, as befits Fara bicycles.

CeramicSpeed Inside
CeramicSpeed headsets and bottom brackets ensure unparalleled durability and friction-fighting smoothness. These bearings are nearly impervious to water and contaminants, even when ridden in harsh Norwegian weather. So much so that CeramicSpeed has the confidence to cover these bearings with a lifetime warranty (applies to coated/ALPHA or SLT bearing products and OSPW cages only, standard products are covered by 4-year warranty - more info )
Material Carbon fiber
Color


Select size Size guide

XS / 48cm

LOW
STOCK
S / 51cm

LOW
STOCK
M / 54cm

SOLD OUT
Notify me
L / 56cm

IN
STOCK
XL / 59cm

LOW
STOCK


Bundle options

Choose your cockpit size

Compatible accessories

Integrated Computer Mount NOK 520 Add to cart
Water Bottle Bundle NOK 950 Add to cart


Taxes and Duties are included for purchases for Norway, the EU and the United Kingdom. Click here for other countries.
FARA CYCLING PRODUCT SKU REFERENCE: XS / 48cm: FSTSRD3480MG0-I. S / 51cm: FSTSRD3510MG0-I. M / 54cm: FSTSRD3540MG0-I. L / 56cm: FSTSRD3560MG0-I. XL / 59cm: FSTSRD3590MG0-I.

The details

Features
• Lightweight TorayTM Carbon fiber frame
• NACA Airfoil tube
• Truncated NACA airfoils for optimal weight
• Aero-optimised fork legs
• Full internal cable routing
• All-round capabilities with 32mm tire clearance
• Hidden aero seat-post wedge
• Reversible aero seat post
• Intuitive fit road geometry
• T47 bottom bracket
• Curved seat-stays for increased comfort
• Cable routing for mechanical and electronic shifting
• UCI approved

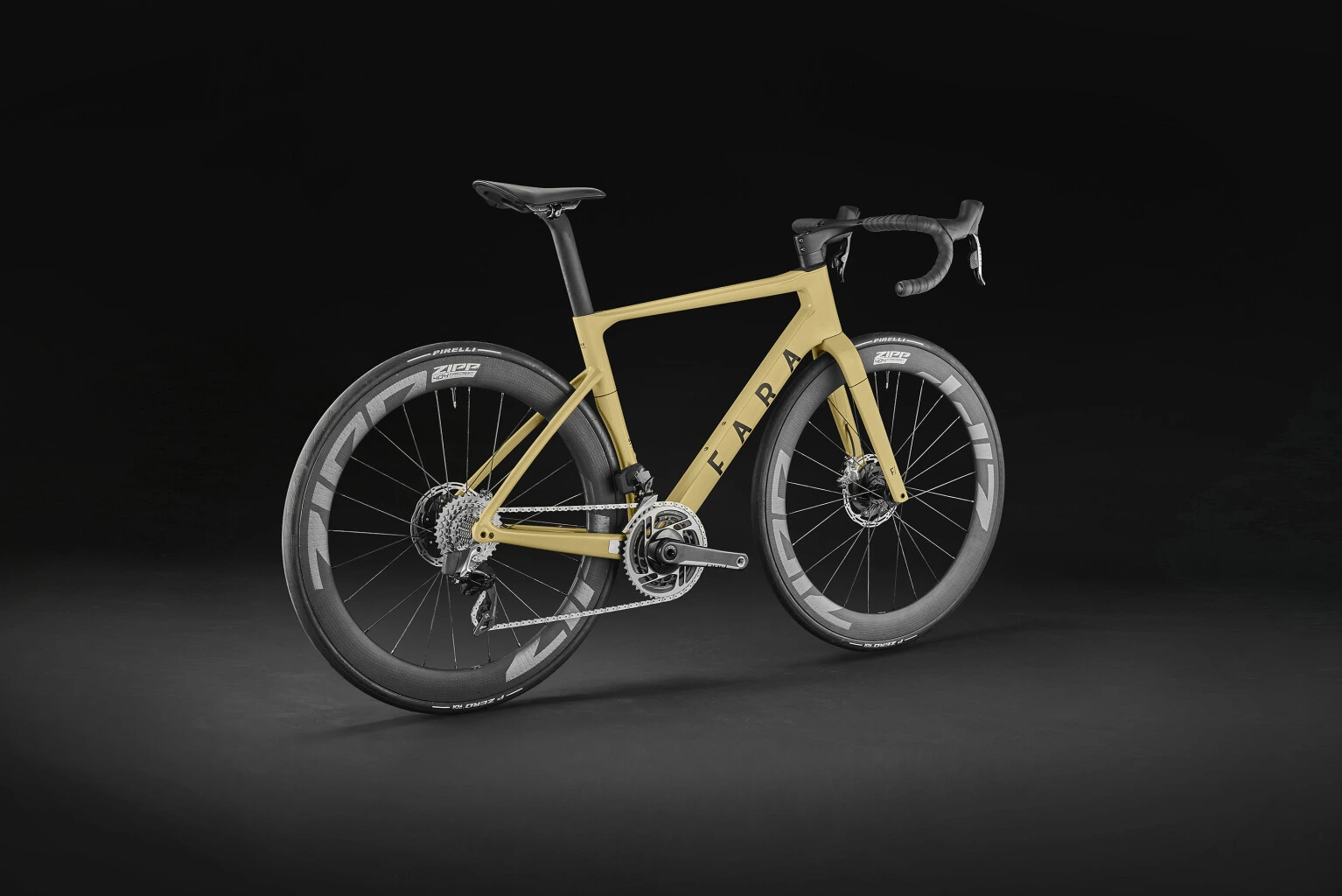

F/Road in strand with ZIP wheels and SRAM red
Size
5 sizes from 48cm to 59cm fit nearly every rider.

Whether you are 160cm or 200cm, the five size options can be adapted to provide you with optimal fit.

In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size.

Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.

Size Guide

Suggested height

160
170
180
190
200
48 cm
160 — 170 cm
51 cm
165 — 175 cm
54 cm
173 — 183 cm
56 cm
178 — 188 cm
59 cm
185 — 199 cm
Geometry
Size XS
48cm
S
51cm
M
54cm
L
56cm
XL
59cm
A. Stand-over height 727mm751mm768mm804mm834mm
B. Front centre 568mm578mm584mm587mm608mm
C. Rear centre 408mm408mm410mm410mm410mm
D. Wheel base 976mm986mm994mm997mm1018mm
E. Top tube length 512mm528mm547mm567mm588mm
F. Stack 505mm523mm545mm567mm596mm
G. Reach 372mm378mm386mm394mm406mm
H. Head stack 108mm126mm144mm166mm195mm
I. Seat tube angle 75°74°73°73°73°
J. Head tube angle 71°72°73°73°73°
K. BB Center to the top
of the seat tube
446mm475mm482mm531mm562mm
L. Max Seatpost insertion 140mm160mm160mm160mm160mm
