Ride Ready from $ 3,699
Bike Builder

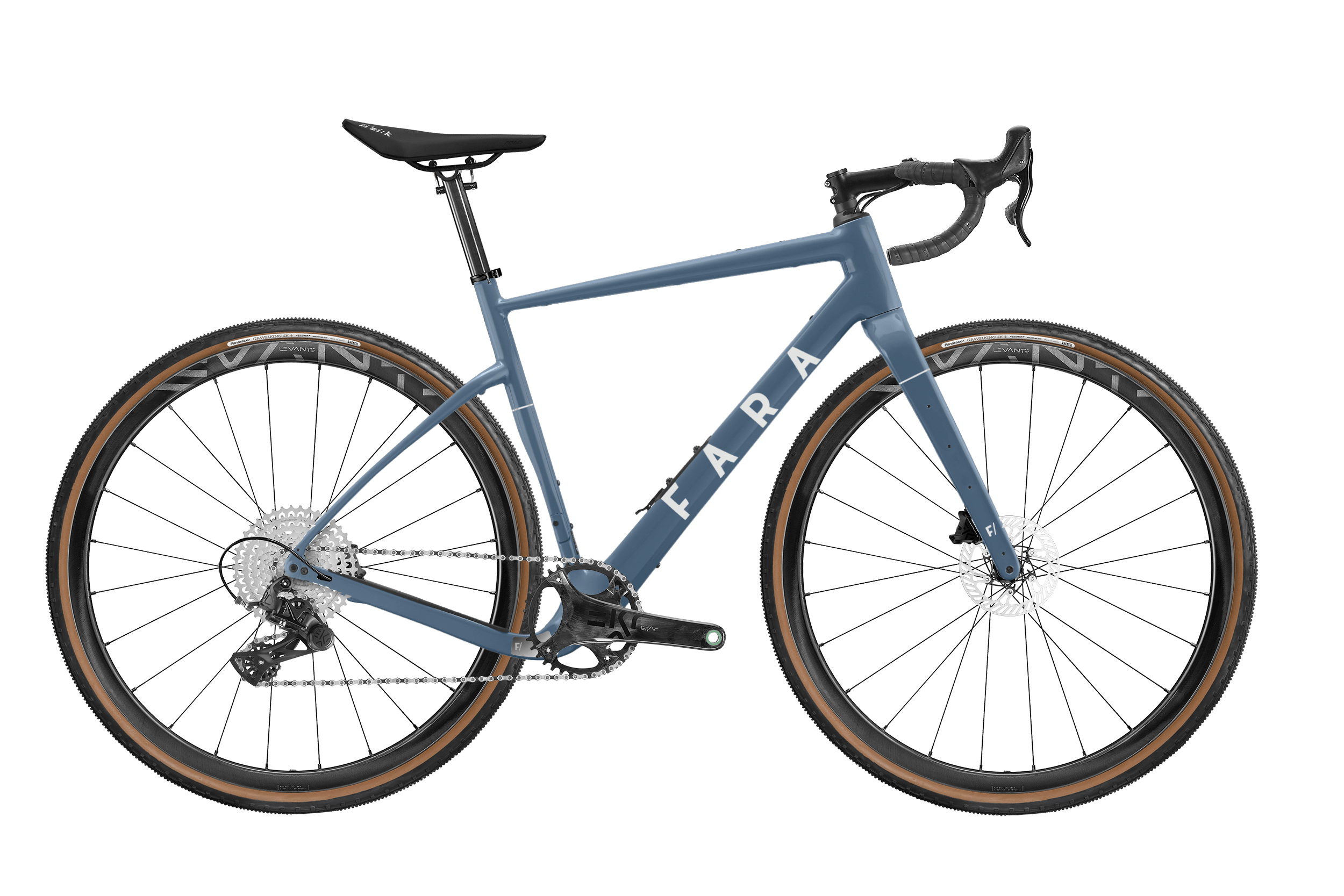

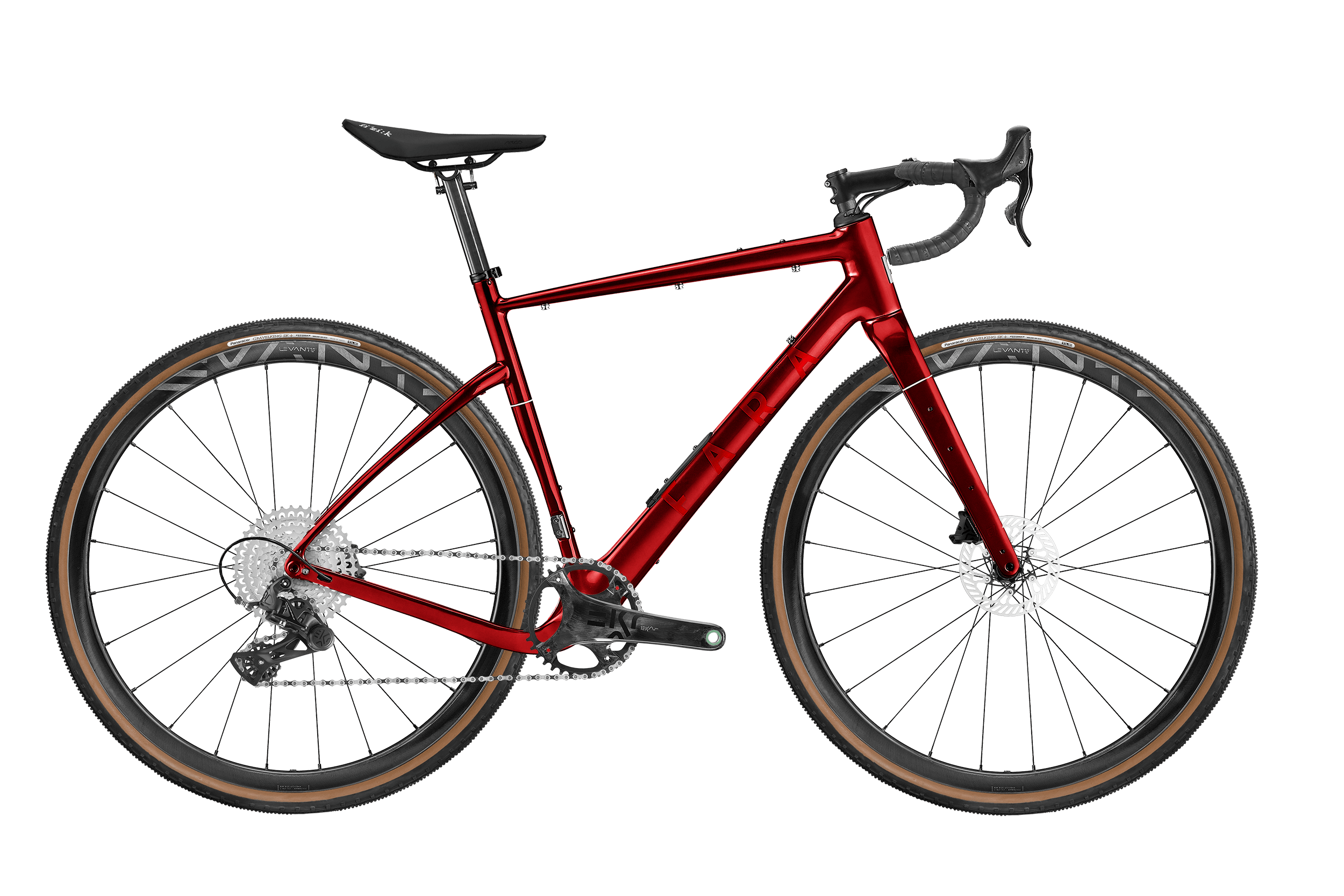

F/Gravel Force XPLR AXS ´24
$ 6,099
Wide tire clearance and a rugged carbon frame empowers you to tackle the roughest terrain. Ready to take you to incredible places.
Shred Ready
Both lightweight and responsive, the F/Gravel's geometry is oriented towards the "fun" side of gravel riding with a shorter wheelbase and sporty handling.
Pack more
Down-tube and top-tube mounts, fork attachments for cargo and an internal Stash Hatch combine with our unique Integrated Bikepacking System. This bike can carry a load!
Robust construction
Specific carbon lay-ups where they are needed make for a durable construction. Yet it still builds up to a complete bike weighing in at sub 9kg.
Ride ready bikes
Our most popular configurations, pre-assembled and ready to ride.
NEW!
Top tier gravel bike
NEW!
Top tier gravel bike
F/Gravel Force XPLR AXS ´24
$ 6,099
NEW!
SRAM Rival XPLR

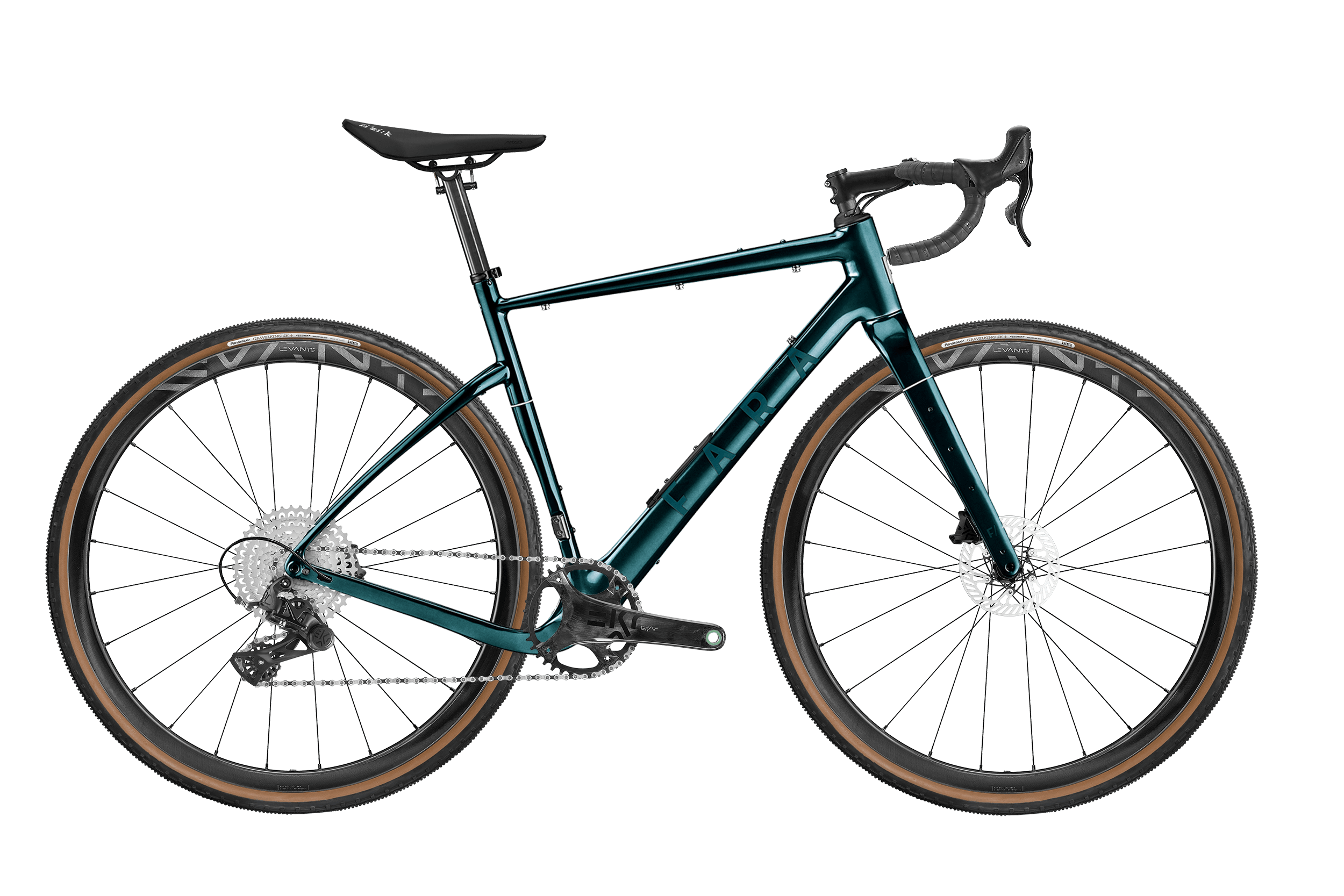

F/Gravel Rival XPLR AXS ´24
$ 4,599
NEW!
Electronic shifting

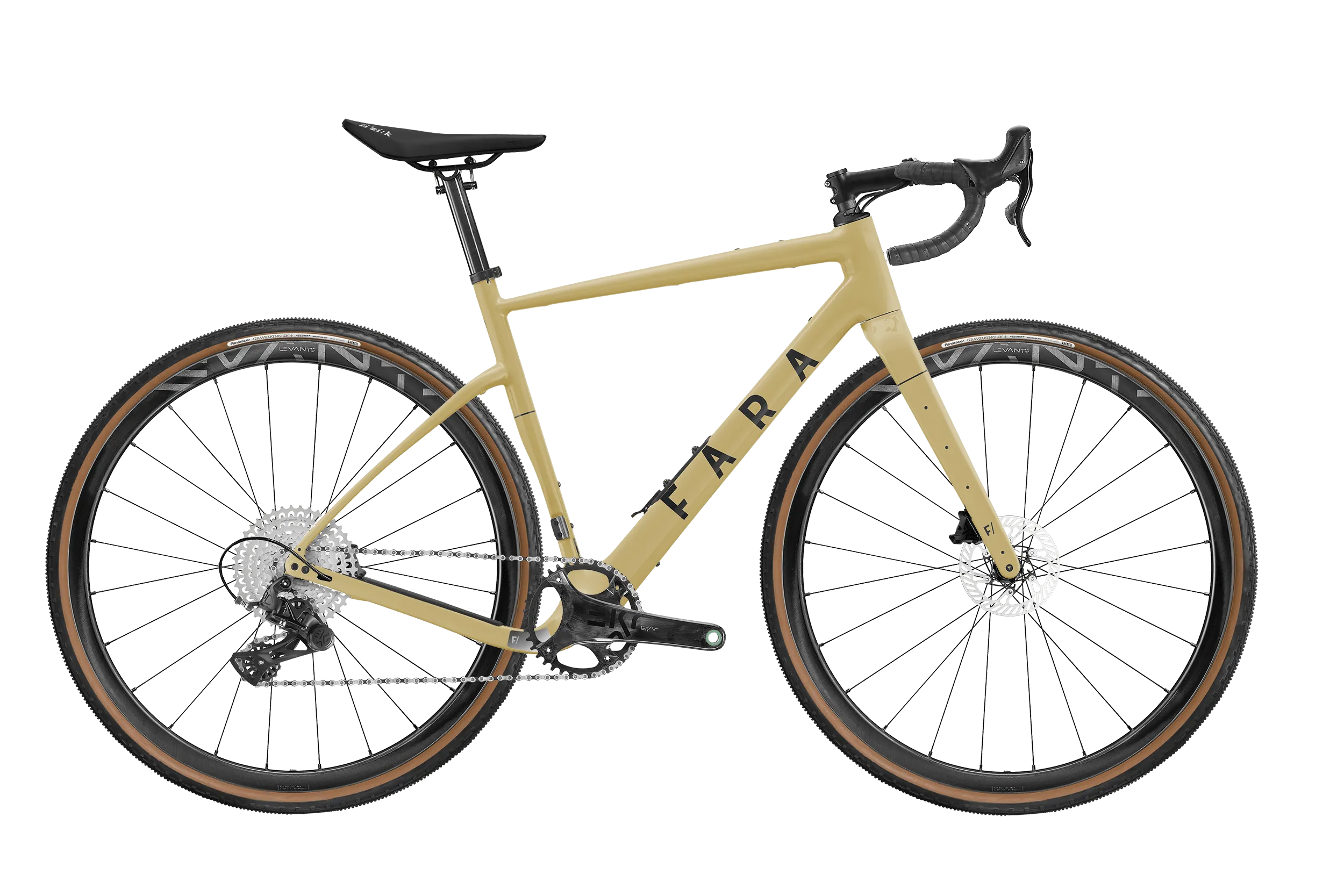

F/Gravel Apex XPLR AXS ´24
$ 3,699
NEW!
SRAM Rival XPLR

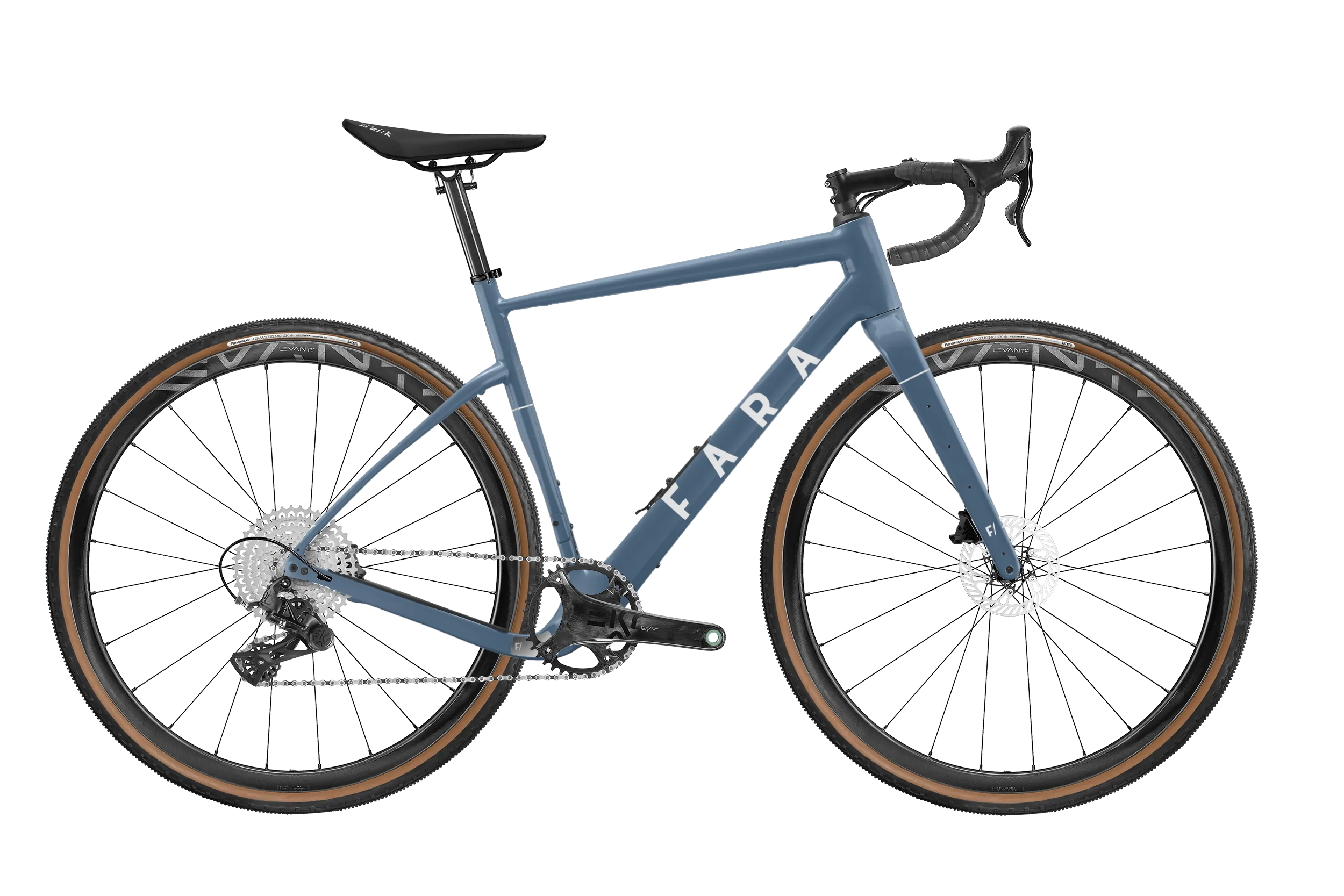

F/Gravel Rival XPLR AXS ´24
$ 4,599
NEW!
Electronic shifting

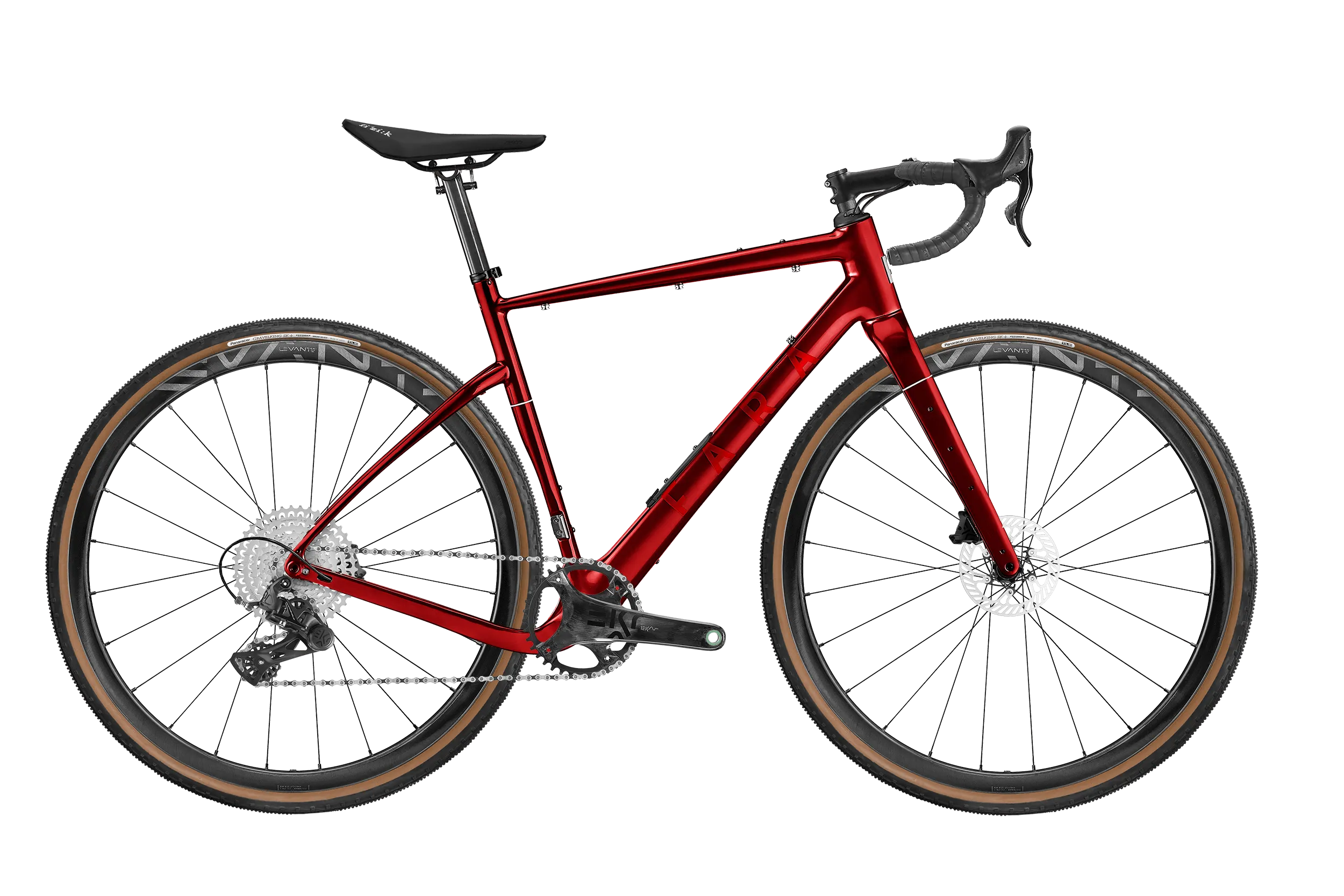

F/Gravel Apex XPLR AXS ´24
$ 3,699
IN
STOCK
STOCK
-25%
Available in Oslo only

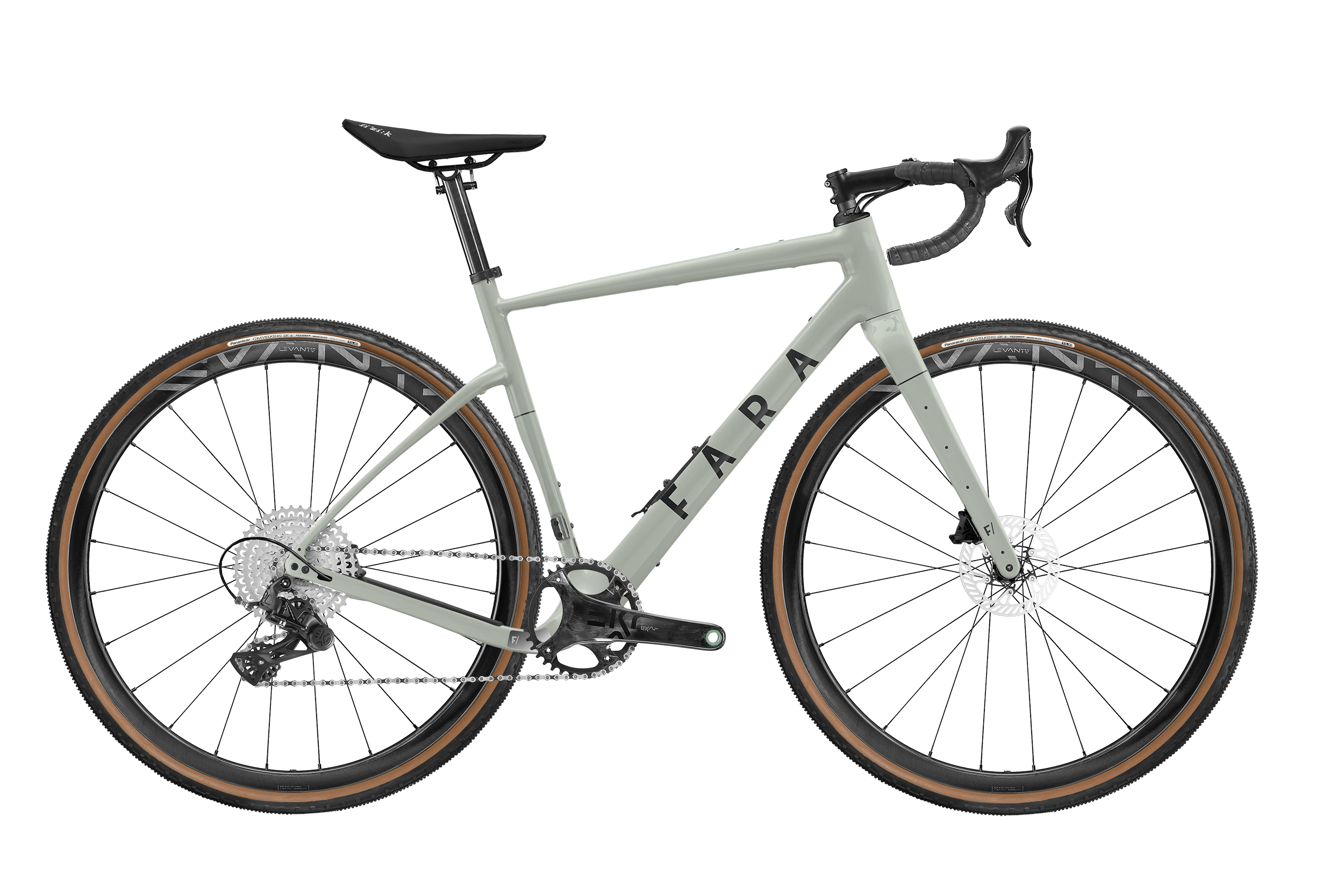

F/Gravel GRX 1x
$ 3,999
$ 2,999
The details
Features
• Toray Carbon fibre frame and fork construction
• Frame weight 1050g weight
• Fully internal cable routing
• Curved seat stays for increased comfort
• Integrated Stash-Hatch
• Integrated Bikepacking System
• Universal 27.2mm round seatpost
• T47 Bottom bracket
• Wide tire capabilities up to 700x50mm
• Integrated fender mounts
• Triple fork cargo mounts
• Direct mount front brake for 160mm rotors
• 12mm thru axles
• Frame weight 1050g weight
• Fully internal cable routing
• Curved seat stays for increased comfort
• Integrated Stash-Hatch
• Integrated Bikepacking System
• Universal 27.2mm round seatpost
• T47 Bottom bracket
• Wide tire capabilities up to 700x50mm
• Integrated fender mounts
• Triple fork cargo mounts
• Direct mount front brake for 160mm rotors
• 12mm thru axles
Size
4 sizes to fit nearly every rider
Our F/Gravel size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.
In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.
Our F/Gravel size range starts from 49cm to fit smaller riders down to 160cm tall and up to size 59cm for riders up to 195cm. The four size options are ideally suited to provide you with an optimal fit.
In addition, stack and reach increments rise evenly throughout the range, providing consistent fit on each and every size. Fork offsets are adapted from the smallest to the largest sizes to ensure great ride quality for all and none of the dreaded toe-overlap.
Size Guide
Suggested height
160
170
180
190
200
49 cm
160 — 170 cm
53 cm
170 — 180 cm
56 cm
180 — 190 cm
59 cm
187 — 197 cm
Geometry
| Size | S 49cm | M 53cm | L 56cm | XL 59cm |
|---|---|---|---|---|
| A. Stand-over height | 731mm | 762mm | 798mm | 824mm |
| B. Front centre | 605mm | 618mm | 635mm | 653mm |
| C. Rear centre | 425mm | 425mm | 425mm | 425mm |
| D. Wheel base | 1017mm | 1028mm | 1043mm | 1061mm |
| E. Top tube length | 532mm | 559mm | 576mm | 593mm |
| F. Stack | 550mm | 570mm | 590mm | 610mm |
| G. Reach | 377mm | 386mm | 396mm | 407mm |
| H. Head stack | 119mm | 138mm | 159mm | 180mm |
| I. Seat tube angle | 74° | 73° | 73° | 73° |
| J. Head tube angle | 71° | 72° | 72° | 72° |
| K. BB Center to the top of the seat tube |
498mm | 521mm | 557mm | 579mm |
| L. Max Seatpost insertion | 180mm | 180mm | 220mm | 240mm |
Journal post
The Arctic Post Road
The land above the Arctic circle is not the most well-known bikepacking destination, not even for Finns or Norwegians. Henna Palosaari from the Shimano Gravel Alliance was no exception, despite the fact that she’s snowboarded on these mountains outside Ylläs for years. When she heard about the 400 km Arctic Post Road route from Ylläs, Finland to Alta, Norway, she knew she had to see what was under the snow.
On June 22nd, Sami Sauri got a message from Henna that read: “I’m planning to ride Arctic Post Road in August, would you be keen to join?”. “Omg, yes would love that”, was Sami’s instant response. Next question: mountain bike or gravel. “I was thinking of doing the MTB version of the route but with a gravel bike”, Henna wrote back with laughing emojis. Sami was in.
Gear

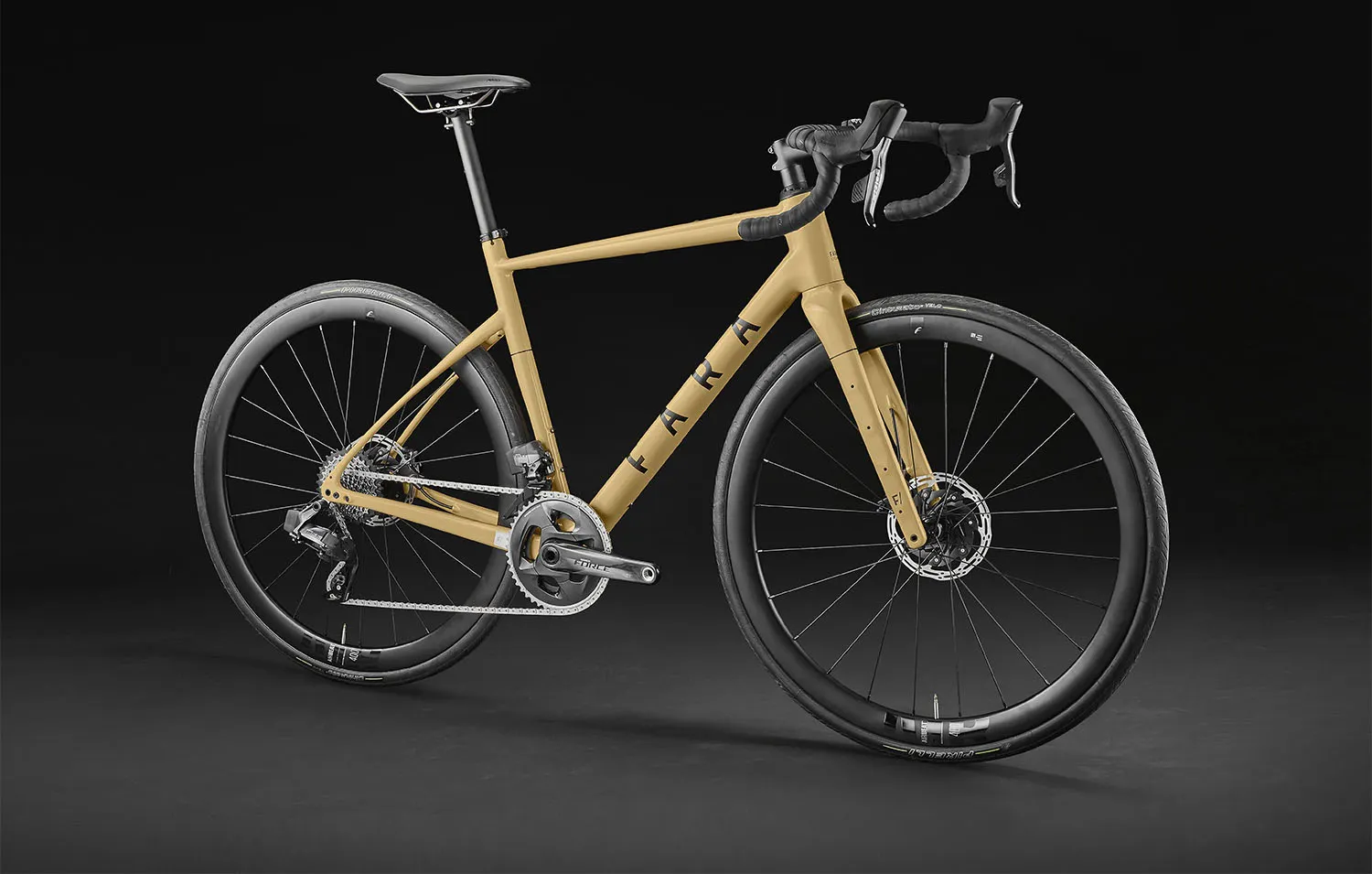

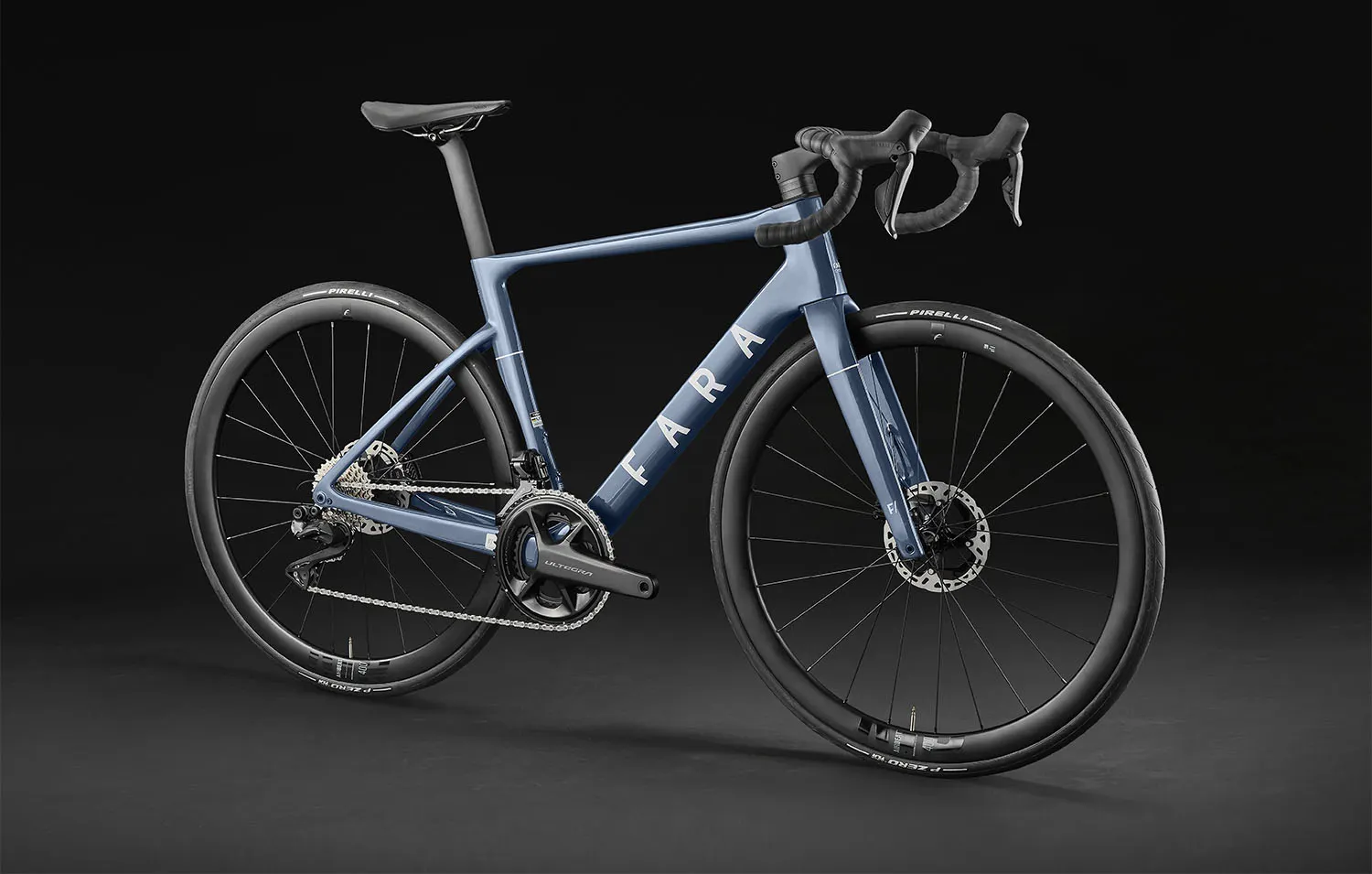

Browse other models
